SON PXW-FX9V - Outside Panel Assembly

37

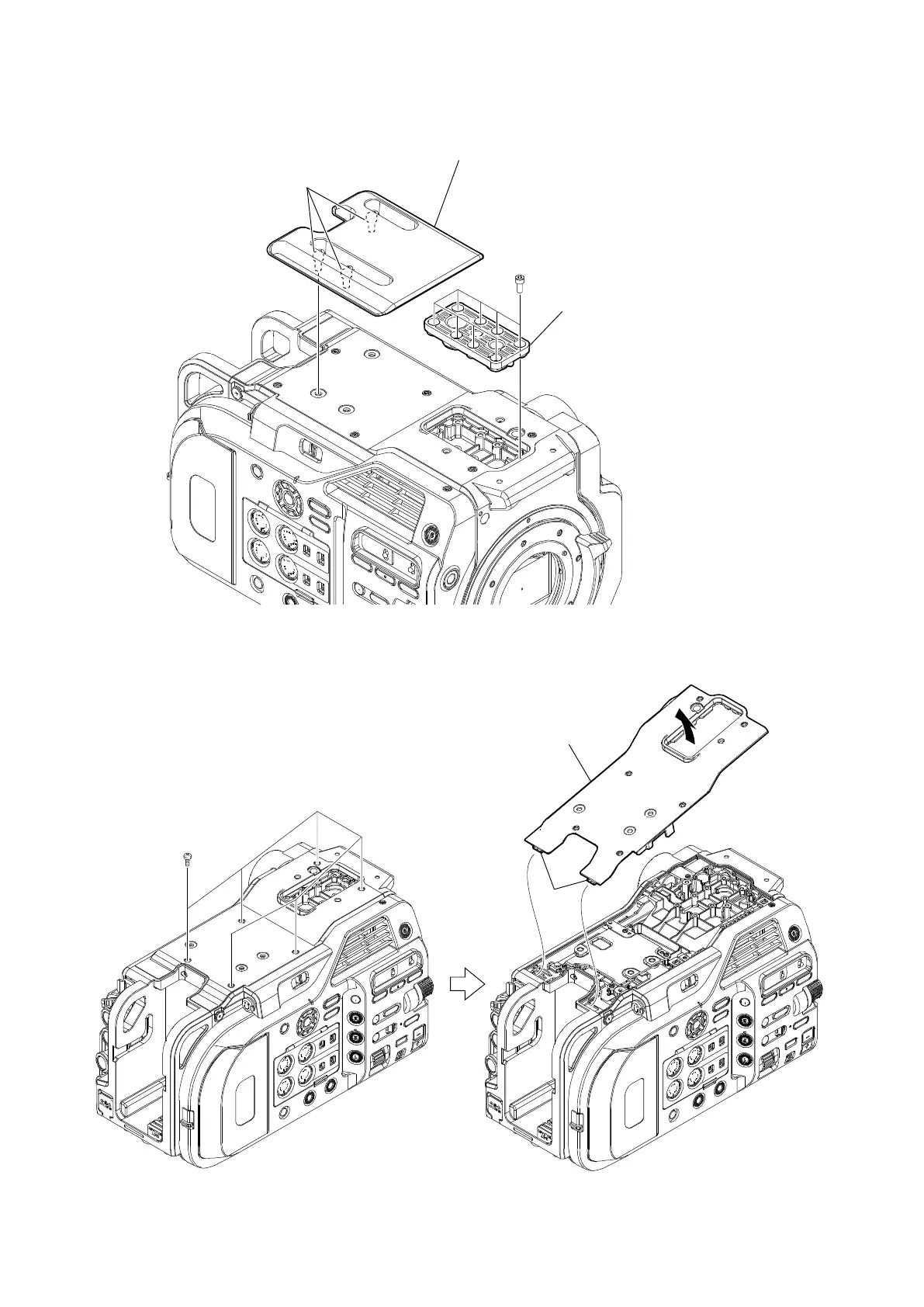

4. Loosen the three captive hexagon socket bolts (M3 x 8), and then remove the shoulder pad assembly.
5. Remove the eight hexagon socket bolts (M2.6 x 6), and then remove the tripod base.
6. Remove the six precision screws.
7. Tilt the bottom cabinet in the direction of the arrow to remove it.
Hexagon socket bolts
(M2.6 x 6)
Captive hexagon
socket bolts
(M3 x 8)
Shoulder pad assembly
Tripod base
Bottom cabinet
Hooks
Precision screws
(P2 x 4)
