5. Open the outside panel assembly.
6. Disconnect the flexible board from the connector (CN9101) on the DPR-394 board, and then remove the outside panel assembly.
Note
Before installing the outside panel assembly, make sure of the following:
• Cables are arranged as shown in the figure.
• Cables are firmly on the hooks and there is no slack in the cables.
7. Install the removed parts by reversing the steps of removal.

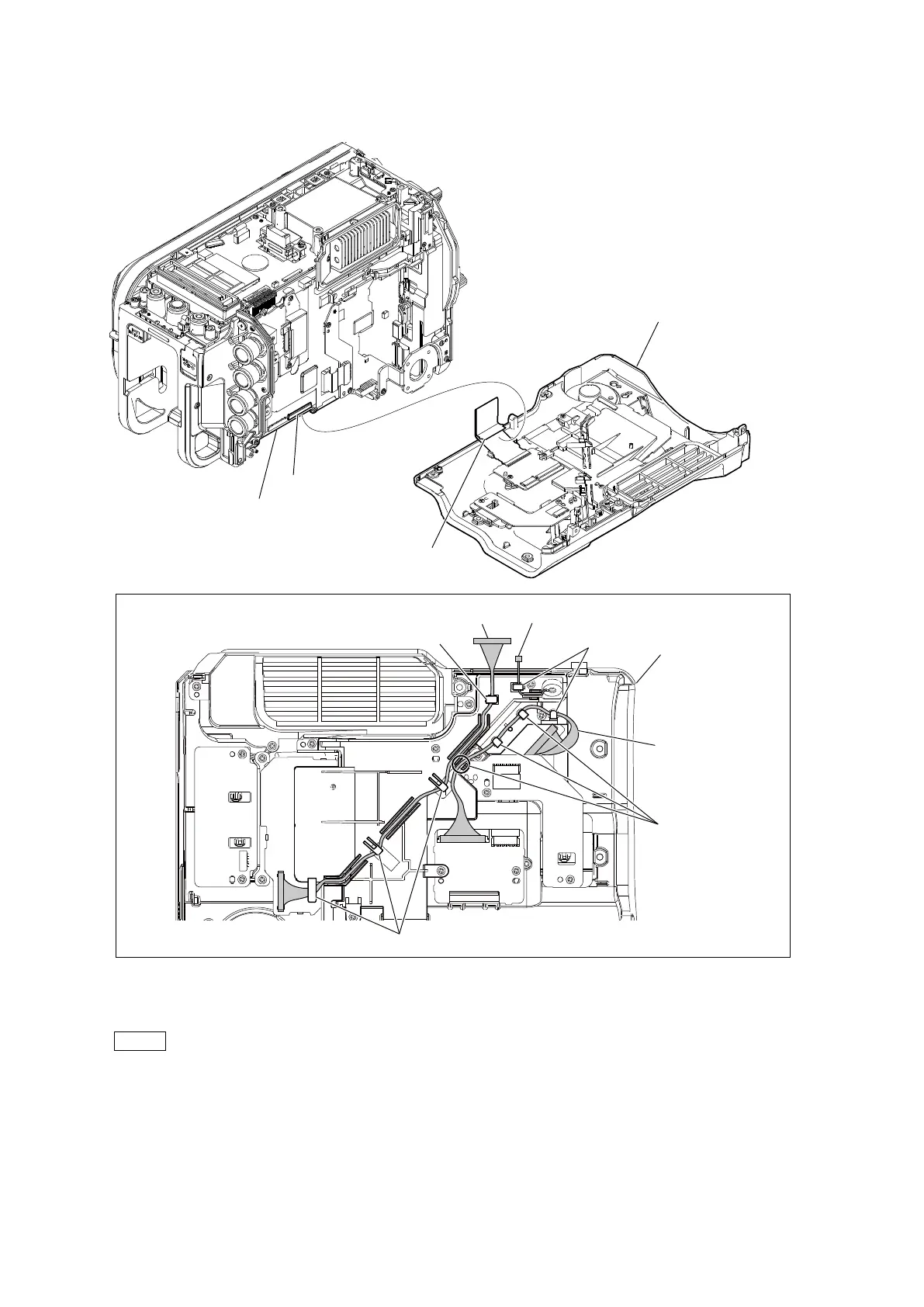

CN9101
DPR-394 board
Flexible board
Outside panel assembly
Outside panel assembly
HarnessFine-wire coaxial cableArrangement of cables
Fine-wire coaxial cable
Hook
Hooks
Hooks
Hooks
