Connectivity

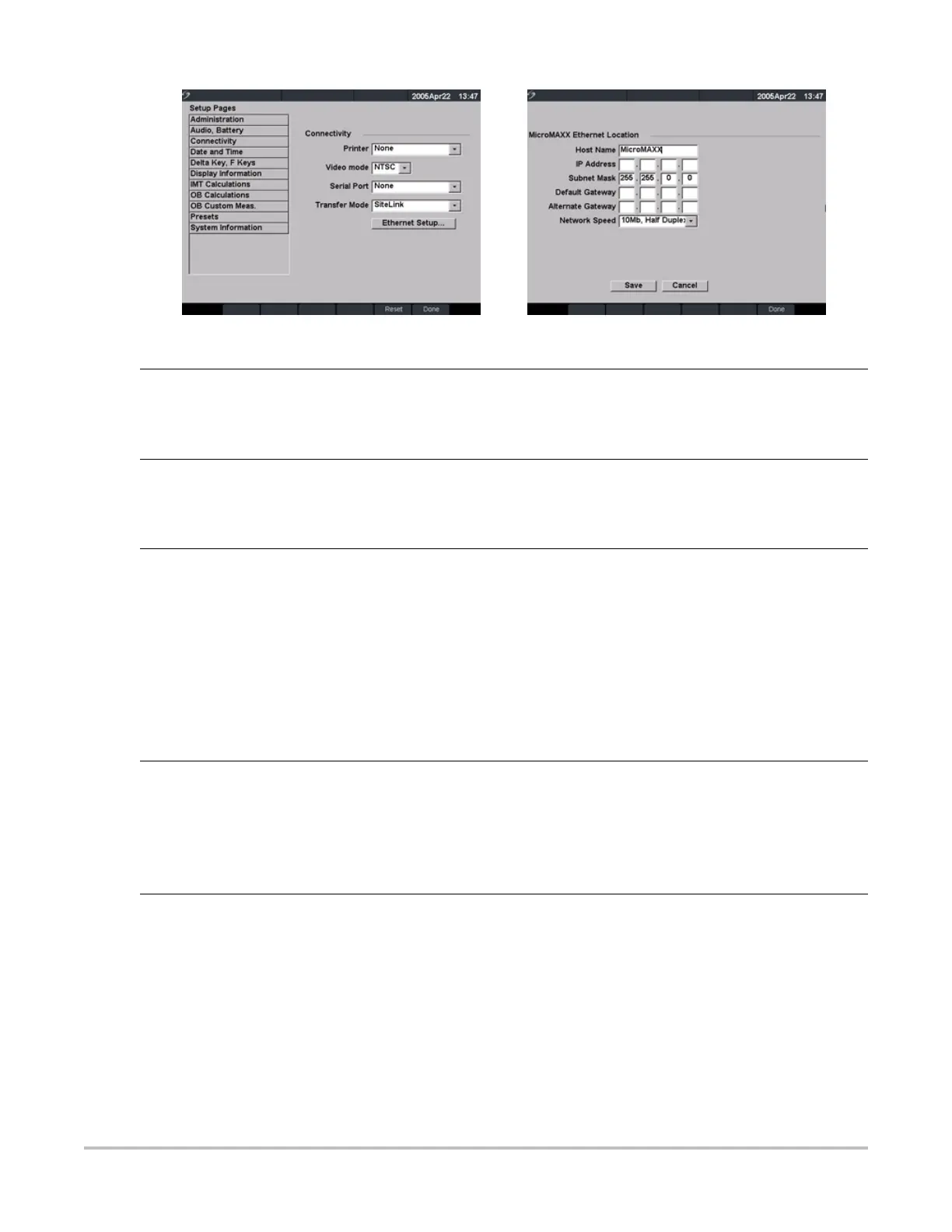

Figure 10 Setup Screens: Connectivity and Ethernet
Printer 1 Press the Setup key.
2 Select Connectivity.
3 In the Printer list, select the desired printer from the list of recommended
printers.
Video Mode 1 Press the Setup key.
2 Select Connectivity.
3 In the Video mode list, select NTSC or PAL for the desired mini-dock video
output.
Serial Port 1 Press the Setup key.
2 Select Connectivity.
3 In the Serial Port list, select VCR, DVD, or Computer (PC).
4 Restart the system to activate VCR or DVD connectivity.
5 Attach a serial cable (RS-232) to the serial port from the mini-dock/MDS to the
VCR, DVD, or PC.
Note: If PC is selected, the system allows report data to be sent as ASCII text from the
system to a PC. Special third party software must be on the PC to acquire, view, or
format the data into a report. Check the compatibility of your software with SonoSite
technical support.
Transfer Mode 1 Press the Setup key.
2 Select Connectivity.
3 In the Transfer Mode list, select DICOM or SiteLink.
After changing connectivity, a dialog box is displayed to restart the system.
Note: The settings for SiteLink Image Manager and system configurations must
correspond. See the SiteLink Image Manger 3.0 User Guide.
Ethernet Connectivity 1 Press the Setup key.
2 Select Connectivity.
3 In the Transfer Mode list, select SiteLink.
After changing connectivity, a dialog box is displayed to restart the system.
