84 Appendix A: Parts List
Transducer Nest Frame Assembly

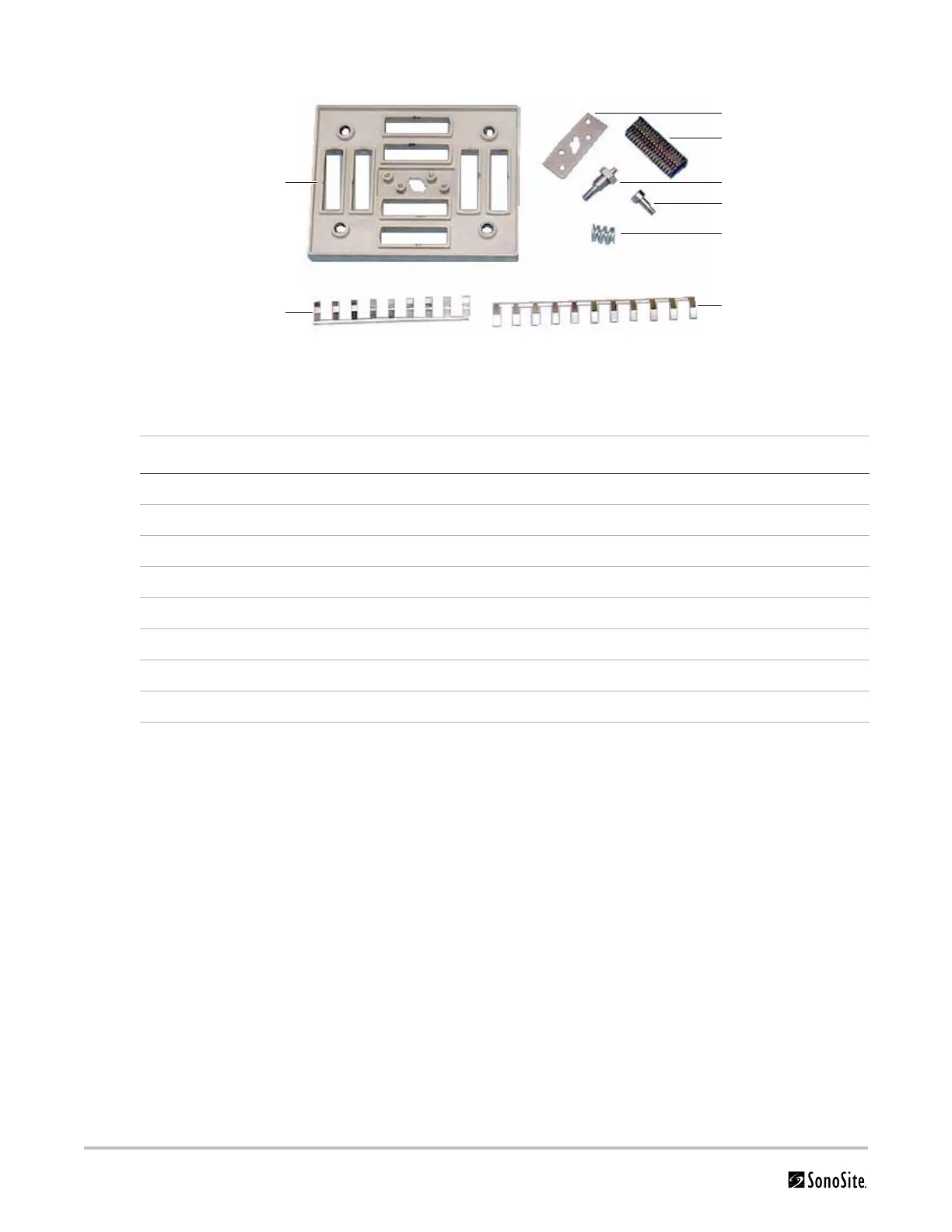

Figure A.9 Nest Frame Parts
Ordering Replacement Parts
To order parts, contact SonoSite Technical Support as indicated in Section , “Returning Products to SonoSite,” on
page 74.
1 (x8)
2 (x4)
4 (x4)
5
8 (x4)
3
6 (x2)
7 (x2)
Table A.5: Nest Frame Assembly
Find Number Part Number Description
1 P00364 Connector, Interposer
2 P00524 Screw, Shoulder, Thrust Plate
3 P00353 Wear Plate
4 P00646 Spring, Thrust Plate, .047 wire
5 P02860 Nest Plate, Interposer
6 P03834 Shield, Perimeter, Long
7 P03833 Shield, Perimeter, Short
8 P02861 Post, Mounting
