Chapter 4: Setup and Operation
System Controls

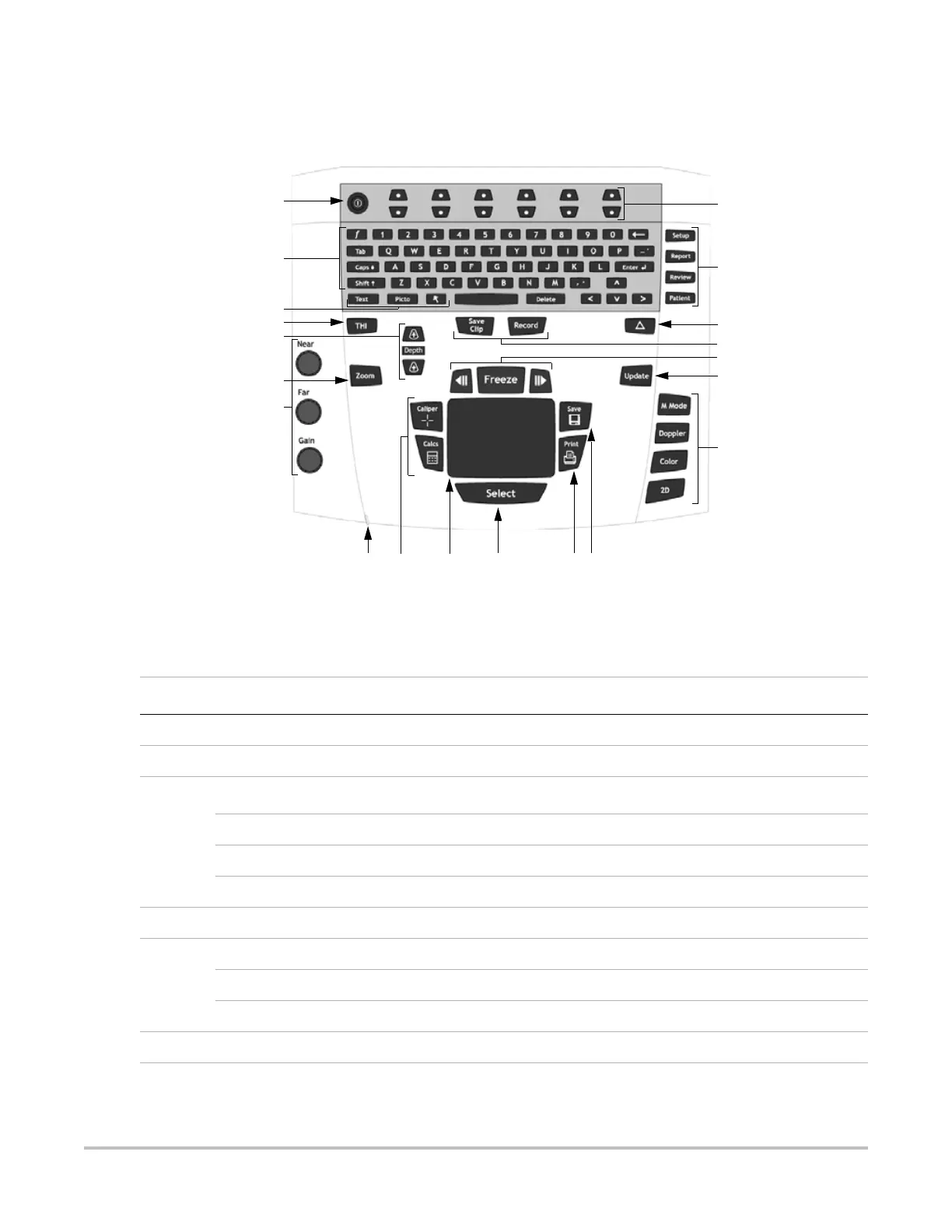

Figure 4.1 System Controls
1
2
3
4
6
7
8 9 11 12 13
14
15
17
16
18
19
20
5
10
Table 4.1: System Controls
Number System Control Description
1 Power Turns system on and off.
2 Alphanumeric Use to enter text and numbers.
3
Annotation
Text Turns the keyboard on and off for text entry.
Picto Turns the pictographs/pictograph marker on and off.
Arrow Displays an arrow that can be moved and rotated within the image area.
4 THI Turns Tissue Harmonic Imaging on and off.
5 Depth Adjusts the imaging depth for 2D.
Depth Up Decreases imaging depth.
Depth Down Increases imaging depth.
6 Zoom Magnifies image 2x.
To Next Page
