78 Appendix A: Parts List
Replacement Parts, System
1
2 2
3
4
5

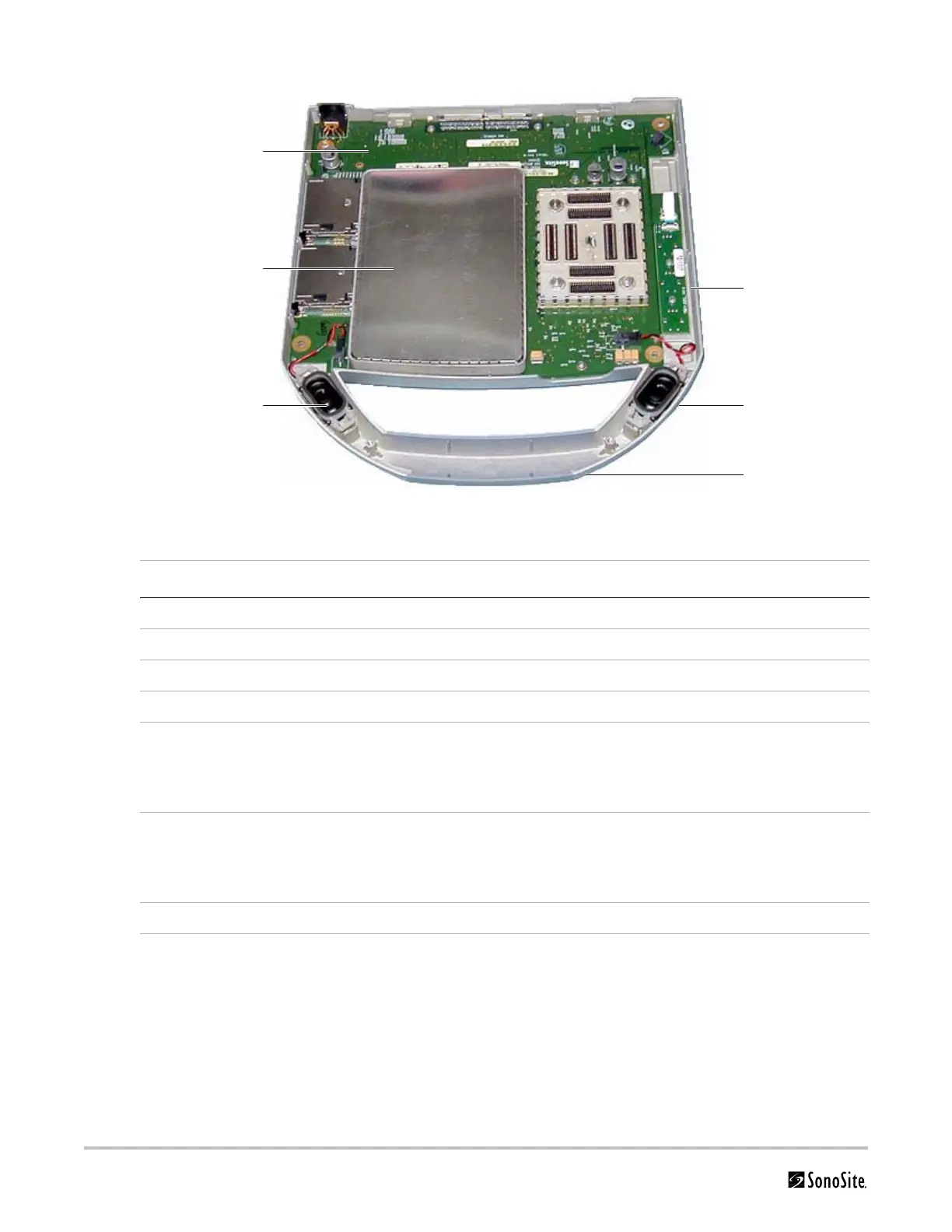

Table A.3: System
Find Number Part Number Description
1 P05471 Service Assembly Power Supply, MicroMaxx
2 P03872 Service Assembly Speaker, MicroMaxx
3 P05470 Service Assembly TGC, MicroMaxx
4 P05474 Service Assembly Upper Enclosure, MicroMaxx
Figure A.6 on
page 82
P03874 Service Assembly Lower Enclosure, MicroMaxx
Note: This part requires printing a replacement label for the product. Contact
SonoSite Technical Support when ordering this part to have the label printed
and placed on the part.
5 P05472 Service Assembly Main PCBA, MicroMaxx
Note: This part does not include the transducer nest frame assembly. Those
parts must be ordered separately if needed to complete the replacement of the
Main PCBA.
6 P00361 Foot
To Next Page
