SonoSite MicroMaxx - Page 66

60 Chapter 7: Replacement Procedures

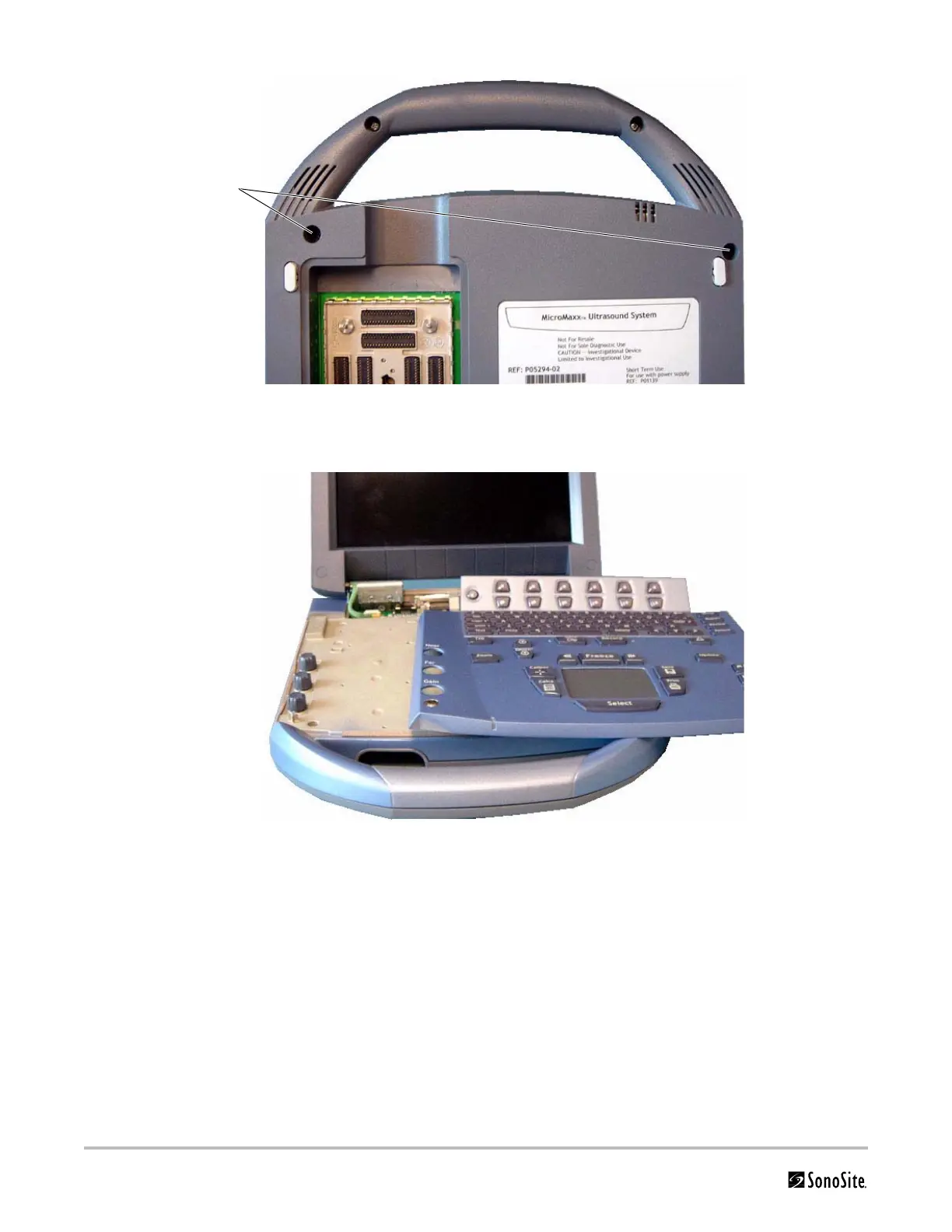

Figure 7.2 System Bottom
4 Turn the system over, fully open the display, and lift off the Control Panel per Figure .
Figure 7.3 Control Panel Removal
5 Disconnect the two connectors from the display to the Main PCBA per Figure .
Screws (2)
