SonoSite MicroMaxx - Page 73

Chapter 7: Replacement Procedures 67
TGC PCBA
TGC PCBA 1 Remove the TGC knobs identified in Figure 7.11.

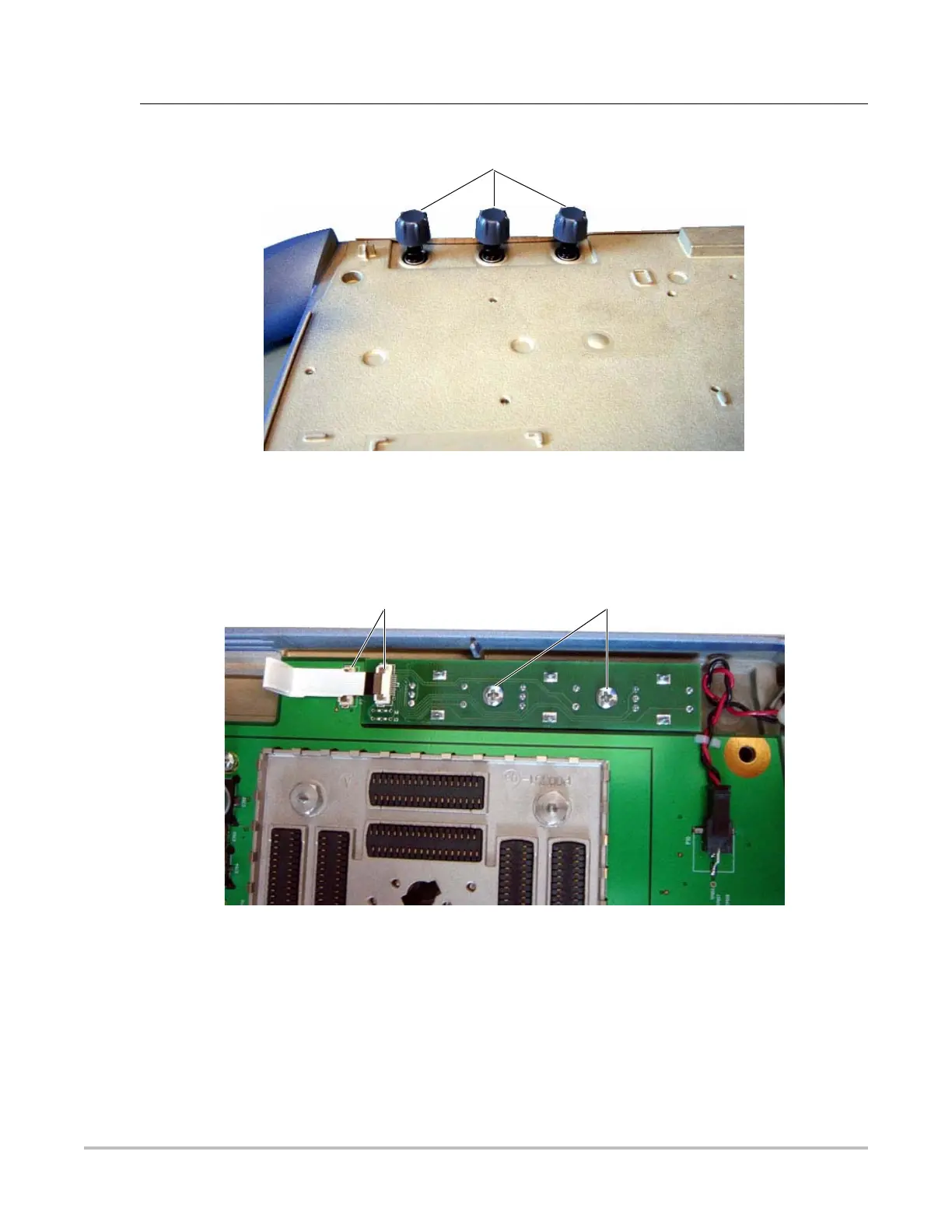

Figure 7.11 TGC Knobs
2 Remove the flex cable from the TGC PCB by lifting on the flex release tab. See Figure 7.12.
3 Remove the flex cable from the Main PCBA by lifting gently on the flex release tab.
4 Remove the two screws holding the TGC PCBA in place.
Figure 7.12 TGC Removal
TGC knobs (3)
Release tabs Screws (2)
