Sony Ericsson W705 - Navigation Key Unit

Working Instructions (mech)
1225-1010 Rev 1
Disassembly
3.9 Navigation Key Unit

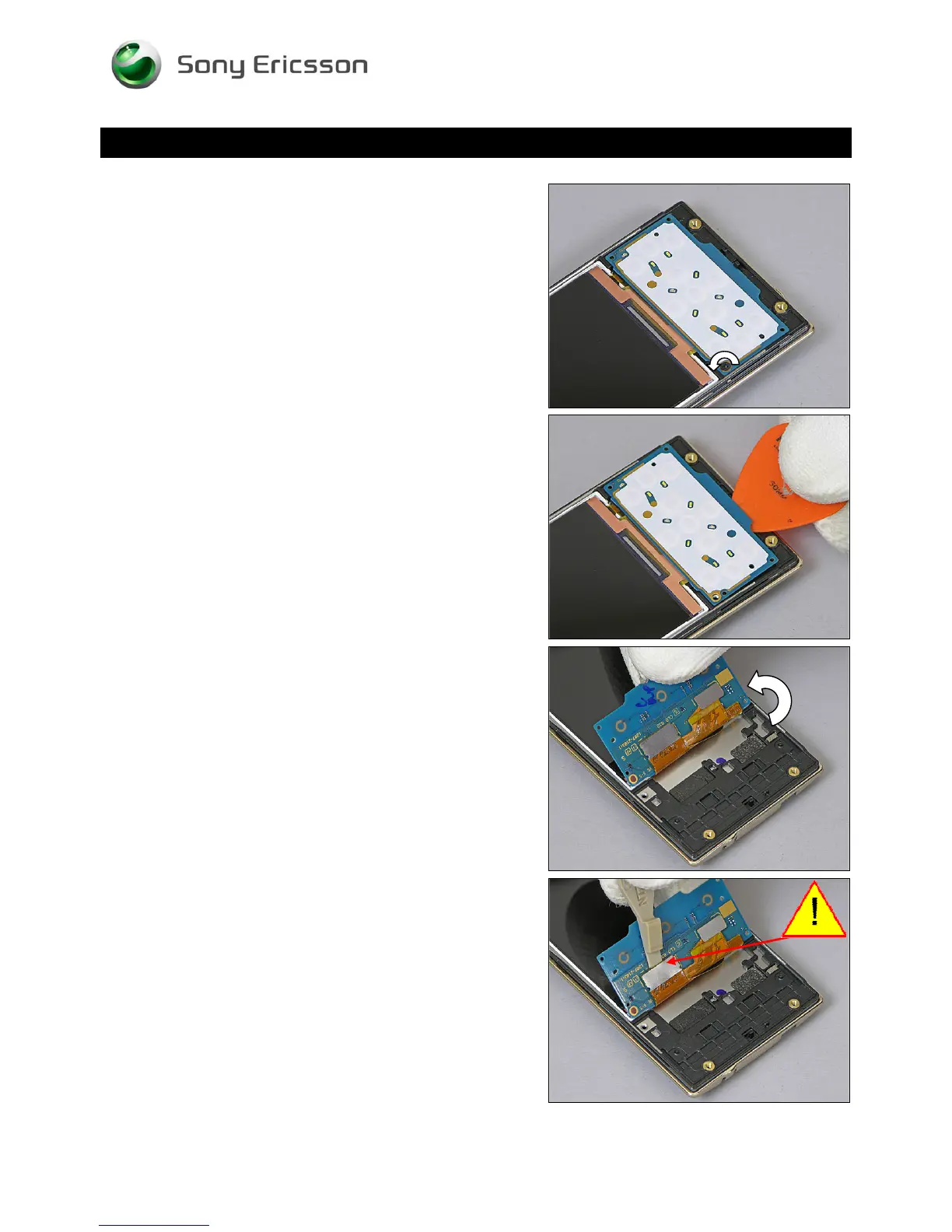

Remove this 1.6 mm black screw by using the JCIS bit.
Insert the Guitar Pick as shown in picture to release the
Navigation Key Unit,
and turn it approximately 90
o
.
Use the Front Opening Tool to disconnect one of the two
BtB connectors.
