Working Instructions (mech)
1225-1010 Rev 1
Reassembly
5.3 Front Cover

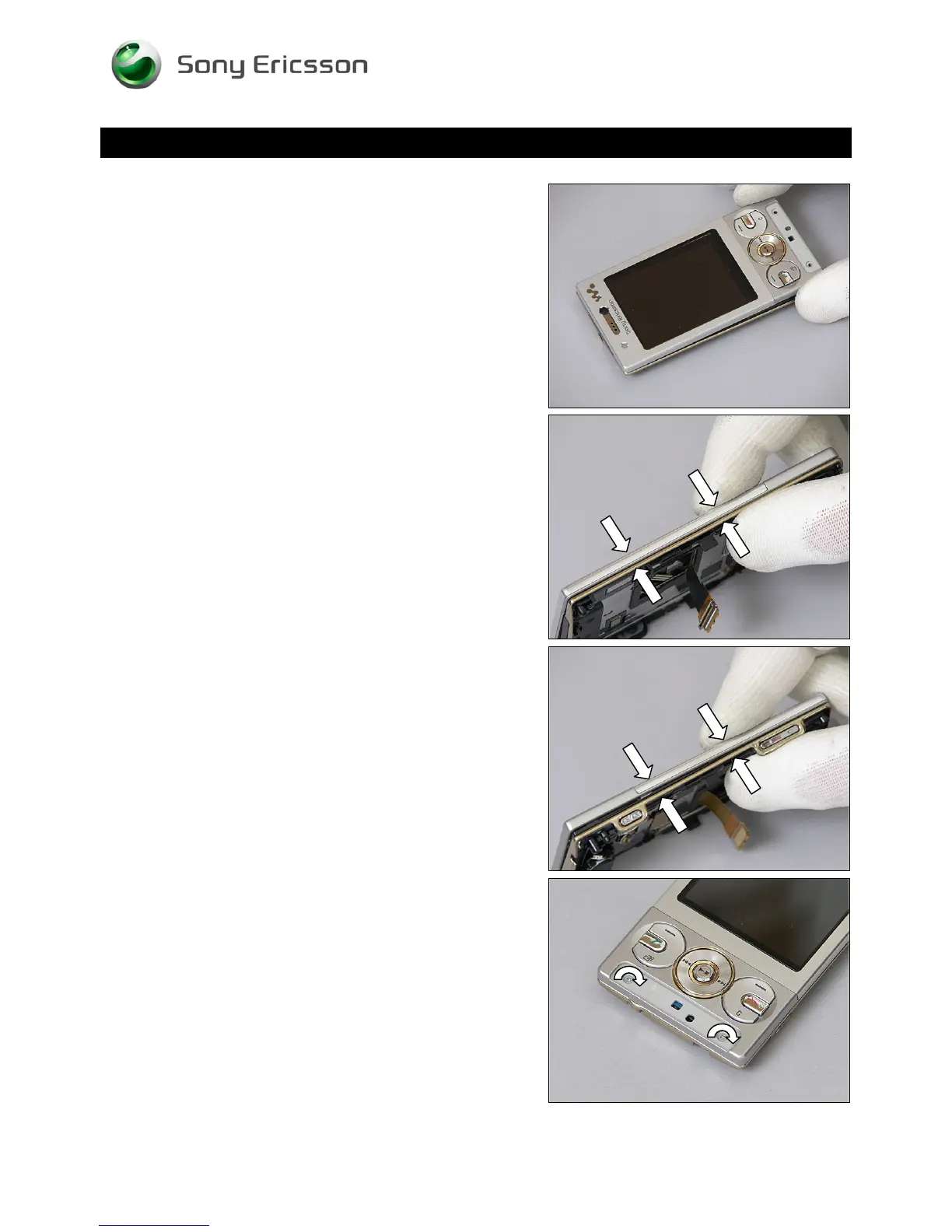

Place the Front Cover on top of the Slider Unit.
Press like this to snap this side of the Front Cover to the
Slider Unit.
Do the same on the opposite side.
Apply 10 Ncm torque when tightening the two 2.3 mm nickel
screws with the JCIS bit.
© Sony Ericsson Mobile Communications AB – Company Internal
60(70)
