Working Instructions (mech)
1225-1010 Rev 1
Replacement

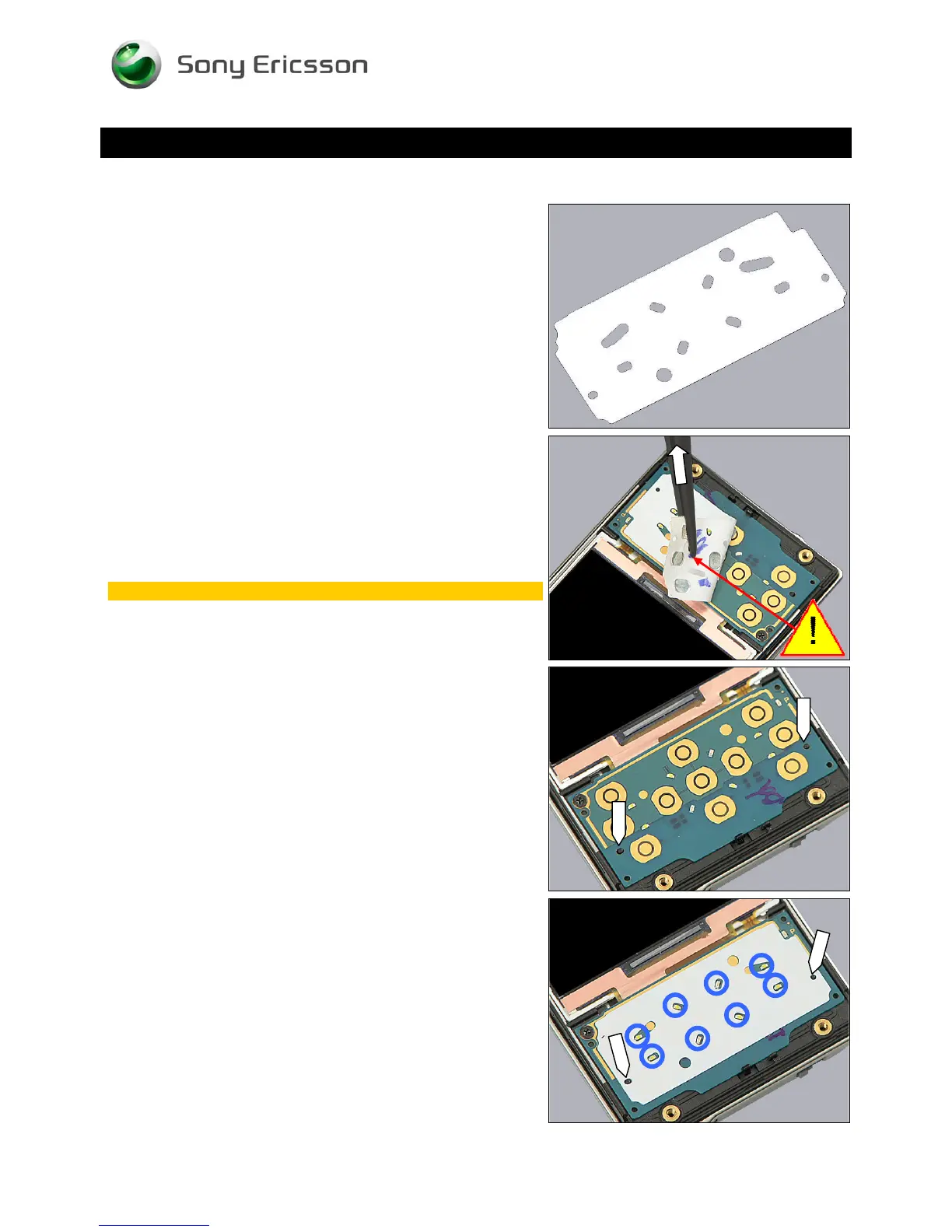

4.27 Dome Sheet
Follow the 3.1 – 3.2 & 3.6 – 3.8 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.3 – 5.5 & 5.9 – 5.10 Reassembly instructions!
REMOVAL
Carefully peel off the Dome Sheet from the Navigation Key
PBA.
Scrap! Not to be reused!
INSTALLATION
Use these two pegs as alignment for the corresponding
holes of the Dome Sheet during installation.
Attach the Dome Sheet and verify that the two holes are
properly aligned with the pegs as described above and that
the eight LEDs can emit light through the holes of the Dome
Sheet (as indicated by the blue circles).
© Sony Ericsson Mobile Communications AB – Company Internal
47(70)
