Working Instructions (mech)
1225-1010 Rev 1

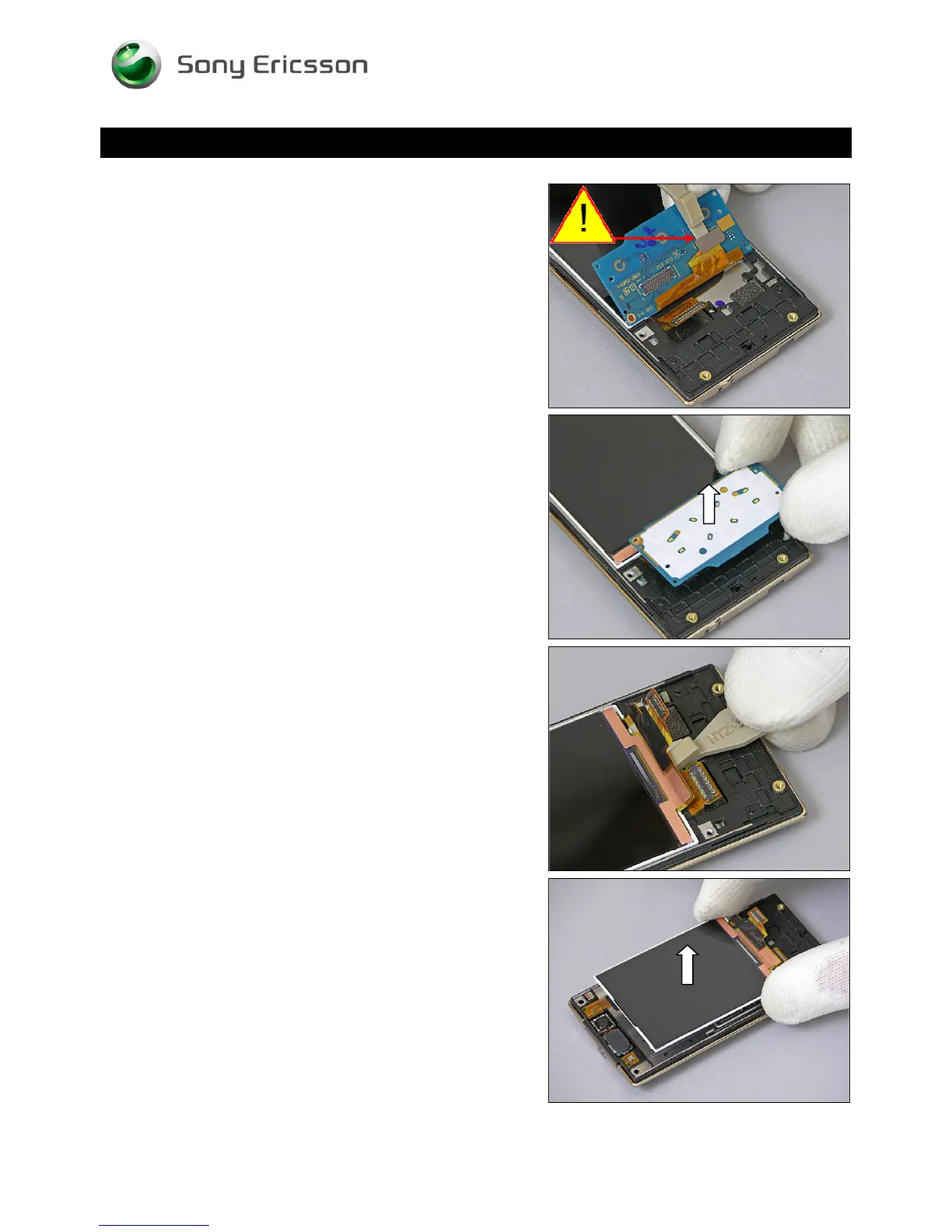

Disassembly
Do the same with the second BtB connector.
Remove the Navigation Key Unit.
3.10 Display
Insert the Front Opening Tool as shown in picture to release
and raise the Display.
Remove the Display by lifting straight up.
© Sony Ericsson Mobile Communications AB – Company Internal
17(70)
