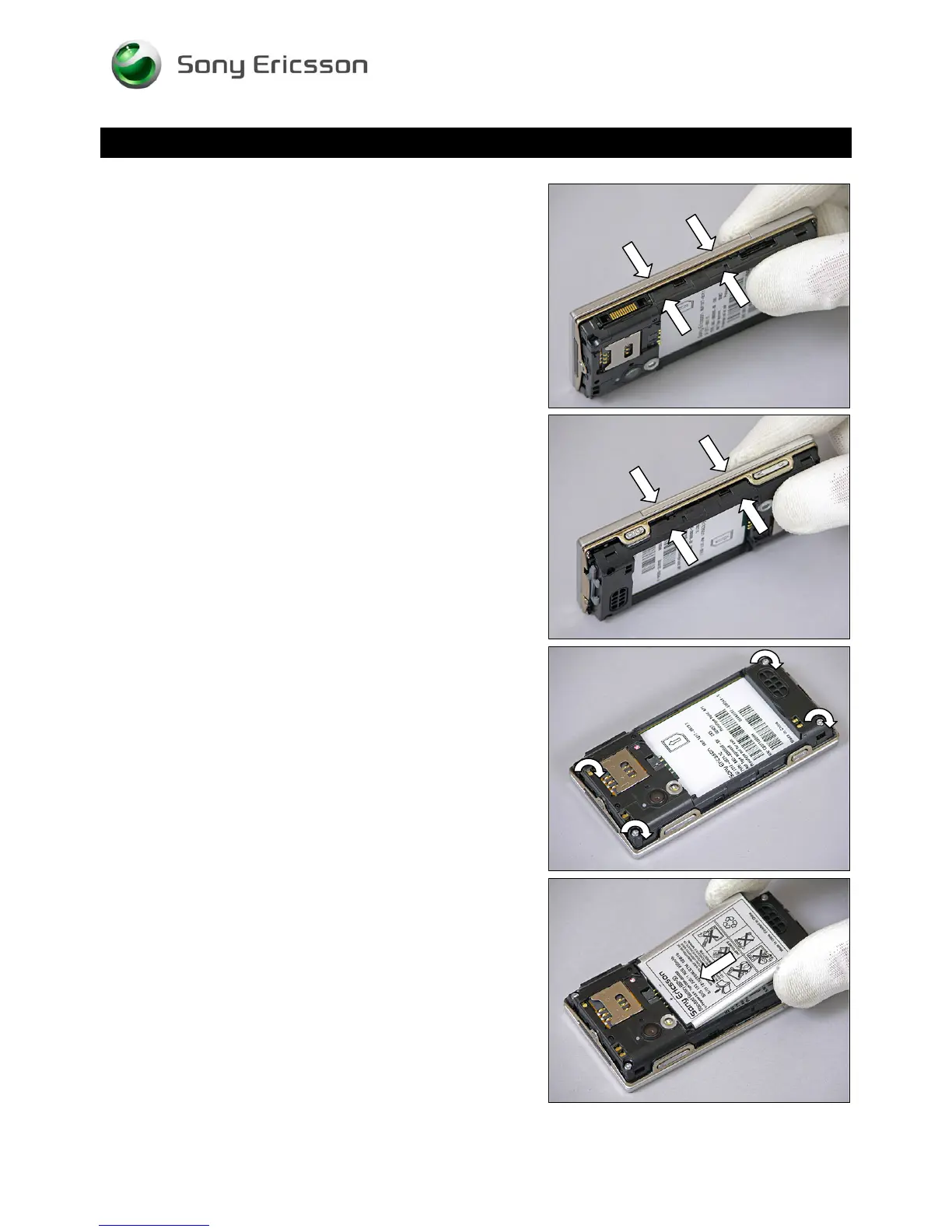

Working Instructions (mech)
1225-1010 Rev 1
Reassembly
Press like this to snap this side of the Rear Cover to the
Slider Unit.
Do the same on the opposite side.
Apply 22 Ncm torque when tightening the four 4.5 mm nickel
screws with torx bit no. 6.
5.9 Battery
Insert the Battery at the top like this.
