Working Instructions (mech)
1225-1010 Rev 1
Replacement

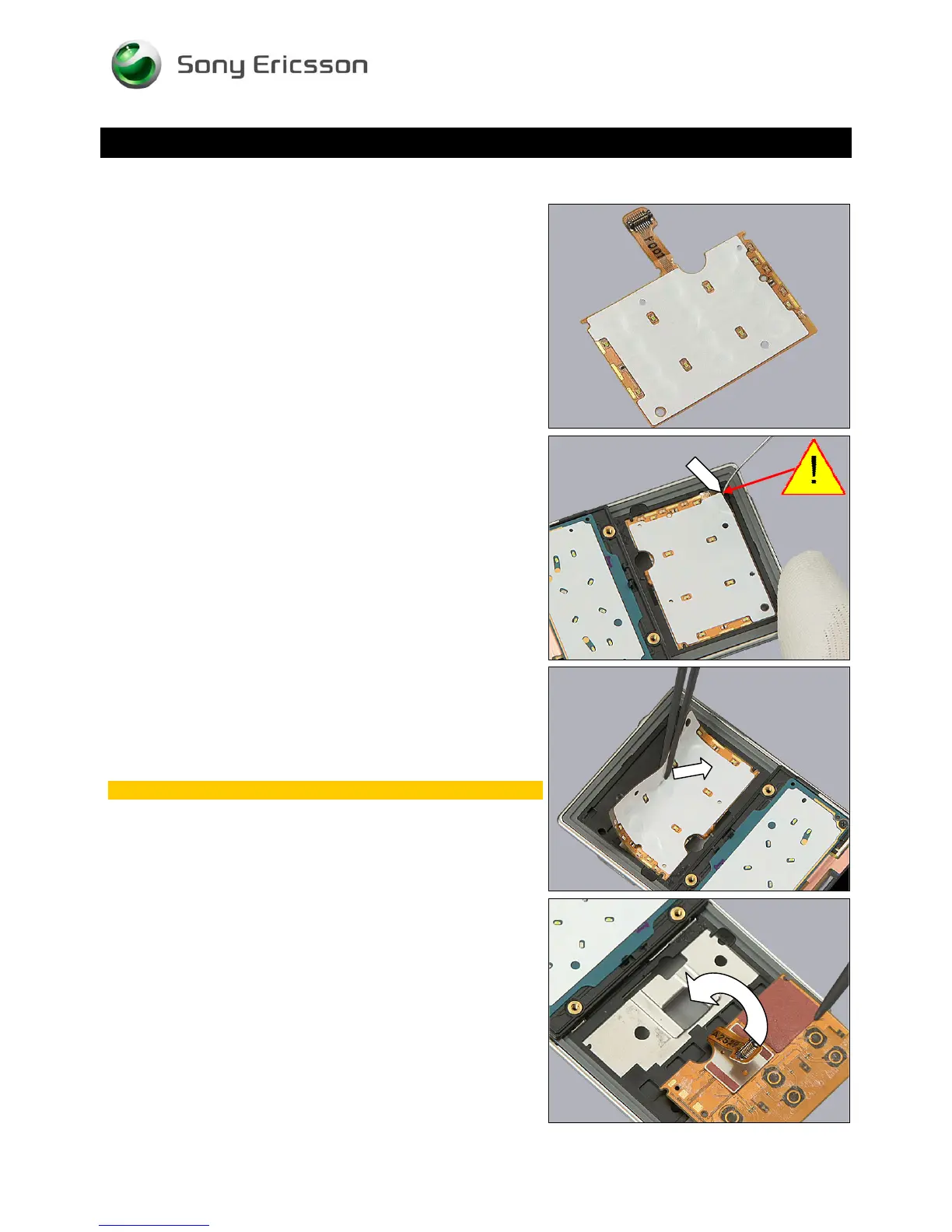

4.29 Key Flex Module
Follow the 3.1 – 3.4 & 3.6 – 3.8 Disassembly instructions!
Follow the 4.28 Removal instructions!
Carry out the replacement as described below.
Follow the 4.28 Installation instructions!
Follow the 5.3 – 5.5 & 5.7 – 5.10 Reassembly instructions!
REMOVAL
Carefully insert the dentist hook in this corner to release the
Key Flex Module from the Slider Unit.
Peel off the Key Flex Module by using the tweezers.
Scrap! Not to be reused!
INSTALLATION
The back side of the Key Flex Module includes a BtB
connector that must pass through the square shaped hole
for connection to the Main PBA.
© Sony Ericsson Mobile Communications AB – Company Internal
50(70)
