Working Instructions (mech)
1225-1010 Rev 1
Replacement

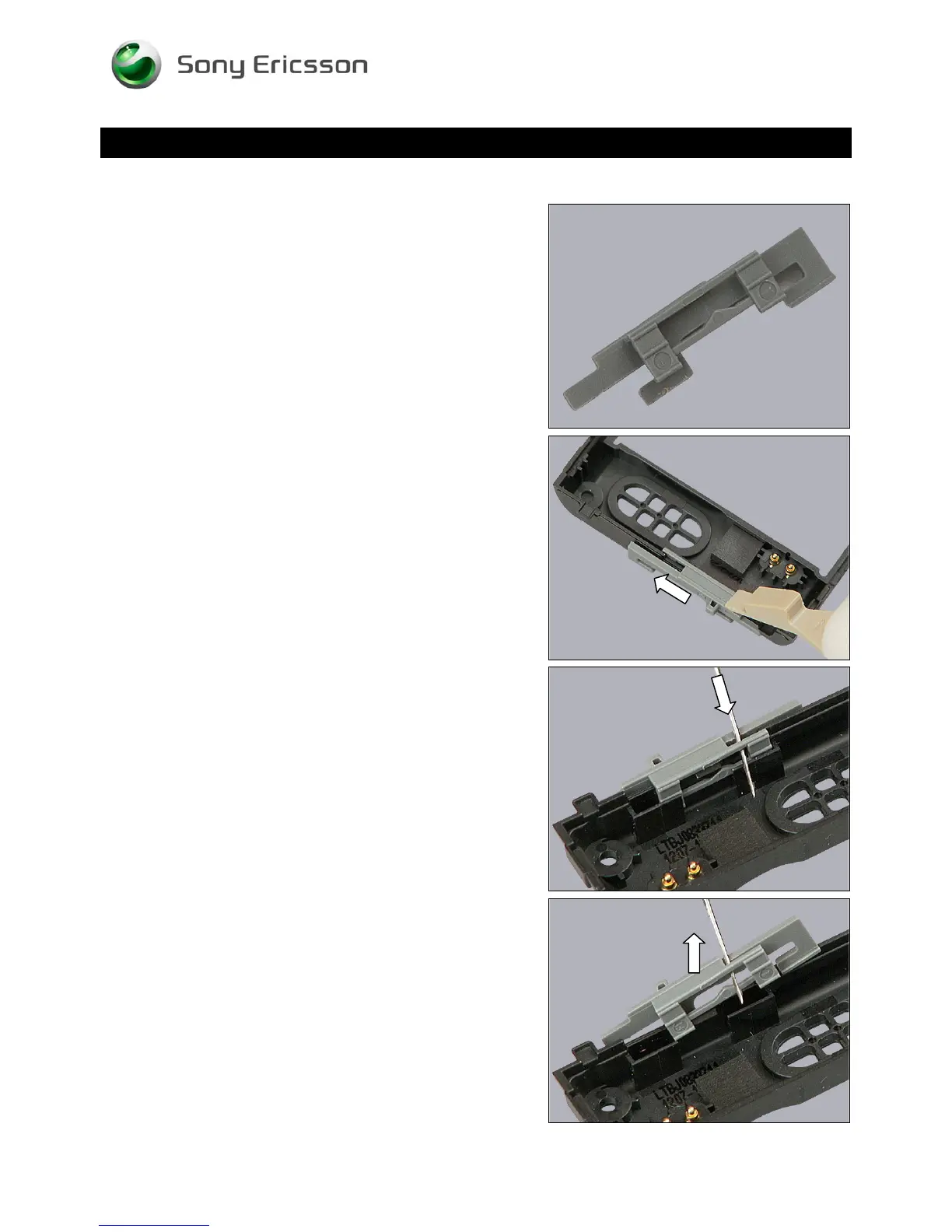

4.8 Knob Lock for Battery Cover
Follow the 3.1 – 3.3 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.8 – 5.10 Reassembly instructions!
REMOVAL
Push the Knob Lock in the direction of the arrow.
Insert the dentist hook as shown in picture.
Pull upwards to release and remove the Knob Lock.
© Sony Ericsson Mobile Communications AB – Company Internal
20(70)
