Working Instructions (mech)
1225-1010 Rev 1
Replacement

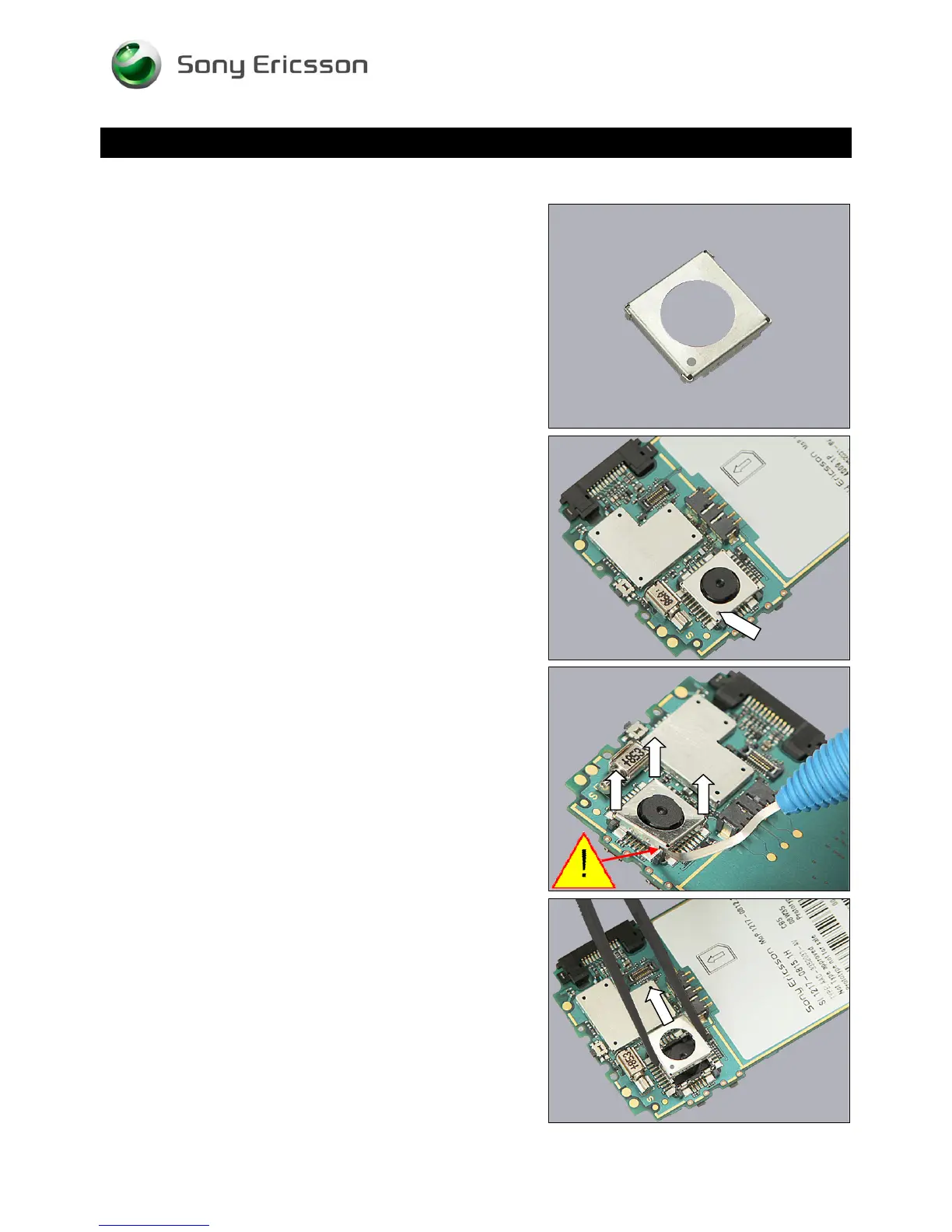

4.20 Shield Can Lid for Camera Socket
Follow the 3.1 – 3.5 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.6 – 5.10 Reassembly instructions!
REMOVAL
Note the position of this mark on the Shield Can Lid.
Insert the dentist hook into the corners of the Lid to release
it,
and then remove it.
© Sony Ericsson Mobile Communications AB – Company Internal
37(70)
