Working Instructions (mech)
1225-1010 Rev 1
Replacement

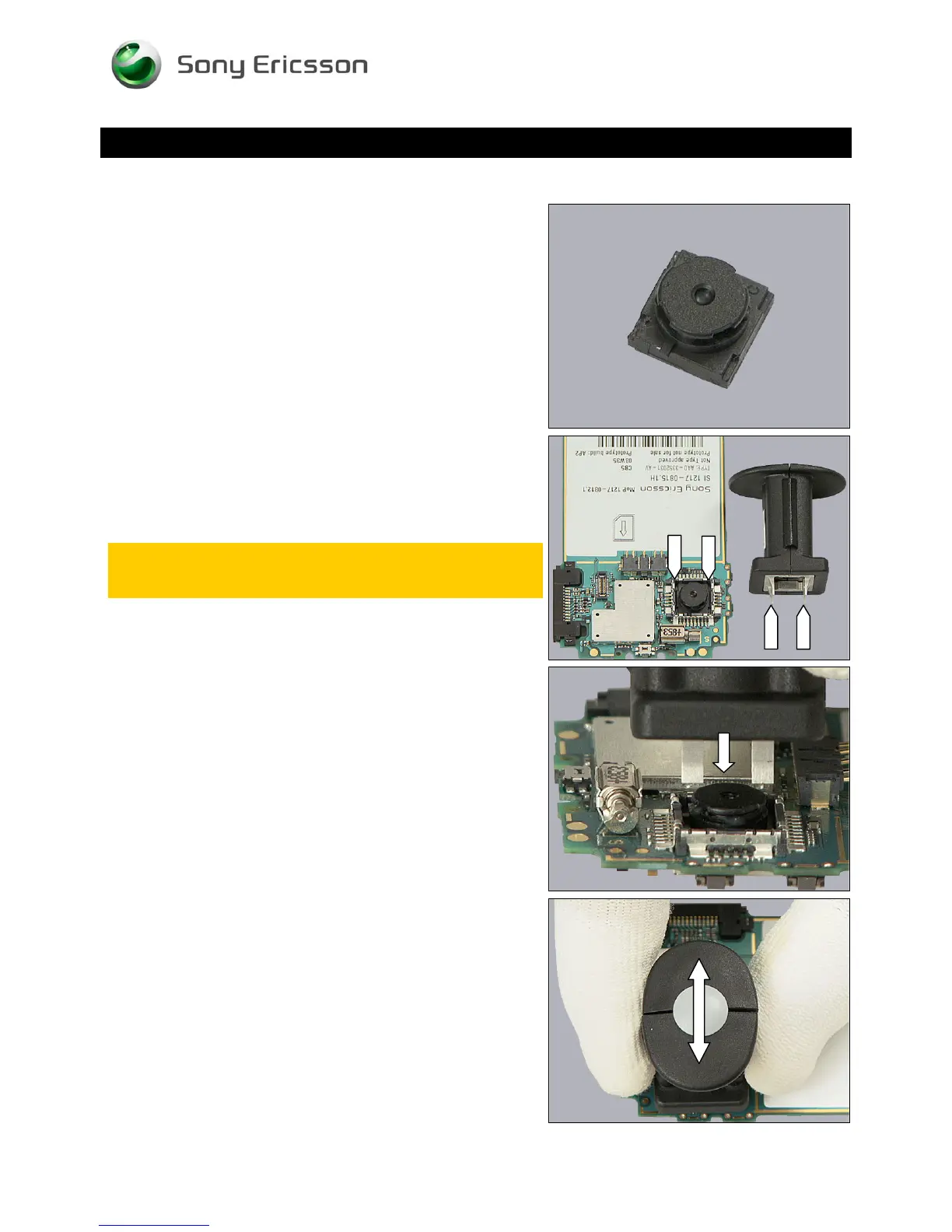

4.21 Camera - Rear
Follow the 3.1 – 3.5 Disassembly instructions!
Follow the 4.20 Removal instructions!
Carry out the replacement as described below.
Follow the 4.20 Installation instructions!
Follow the 5.6 – 5.10 Reassembly instructions!
REMOVAL
Note the orientation of the blades on the Camera
Removal Tool in relation to the position of the camera
socket!
Insert the tool all the way into the camera socket with the
Camera Removal Tool in the position shown in the picture.
Wag the tool, as indicated by the double arrow, to release
the Camera from its socket,
© Sony Ericsson Mobile Communications AB – Company Internal
39(70)
