Working Instructions (mech)
1225-1010 Rev 1
© Sony Ericsson Mobile Communications AB – Company Internal
33(70)

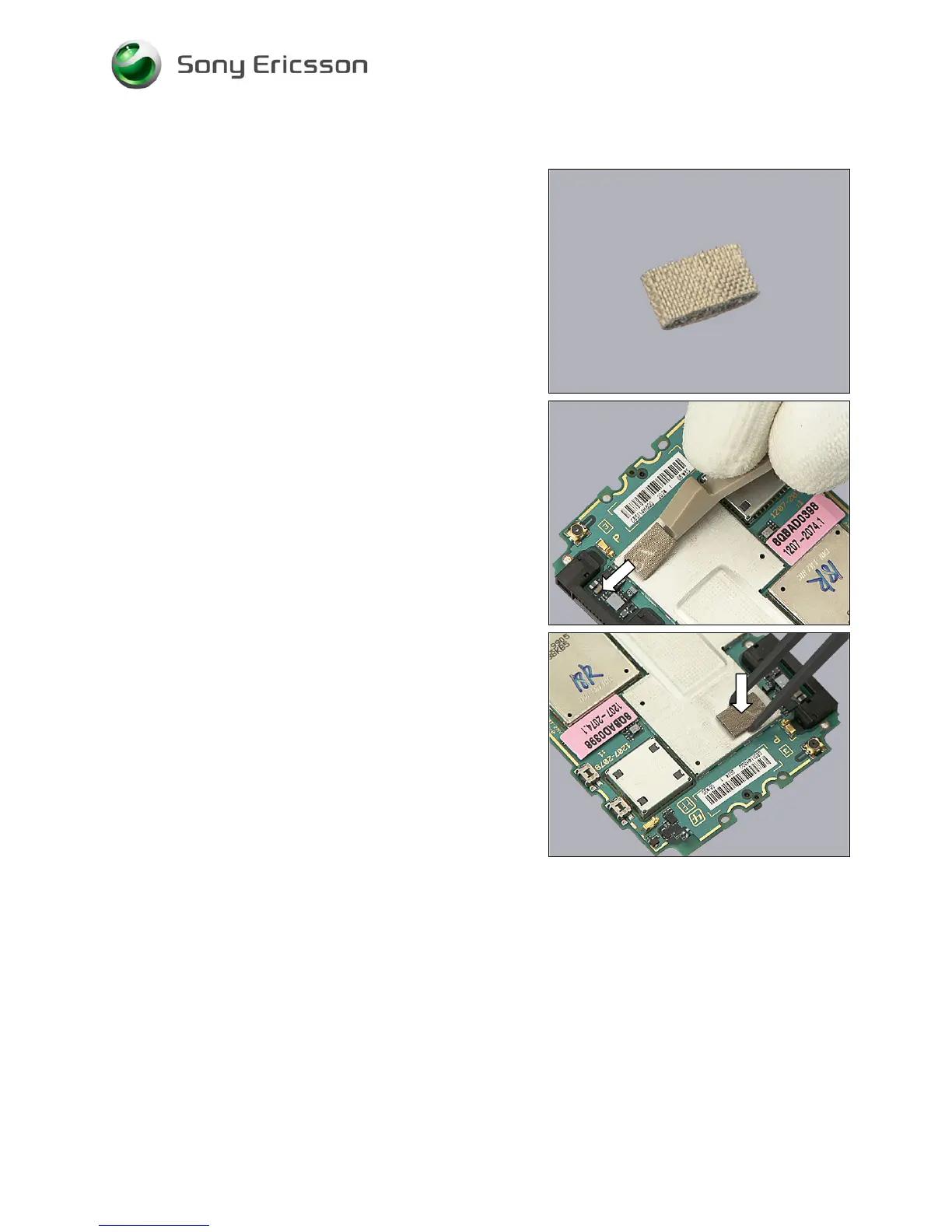

4.16 Gasket BB
Follow the 3.1 – 3.4 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.7 – 5.10 Reassembly instructions!
REMOVAL
Use the Front Opening Tool to peel off the Gasket from the
Main PBA.
INSTALLATION
Place the Gasket in its proper position and press to make it
securely attached.
