Working Instructions (mech)
1225-1010 Rev 1
Replacement
4.25 Navigation Keypad
Follow the 3.1 – 3.2 & 3.6 – 3.8 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.3 – 5.5 & 5.9 – 5.10 Reassembly instructions!
REMOVAL

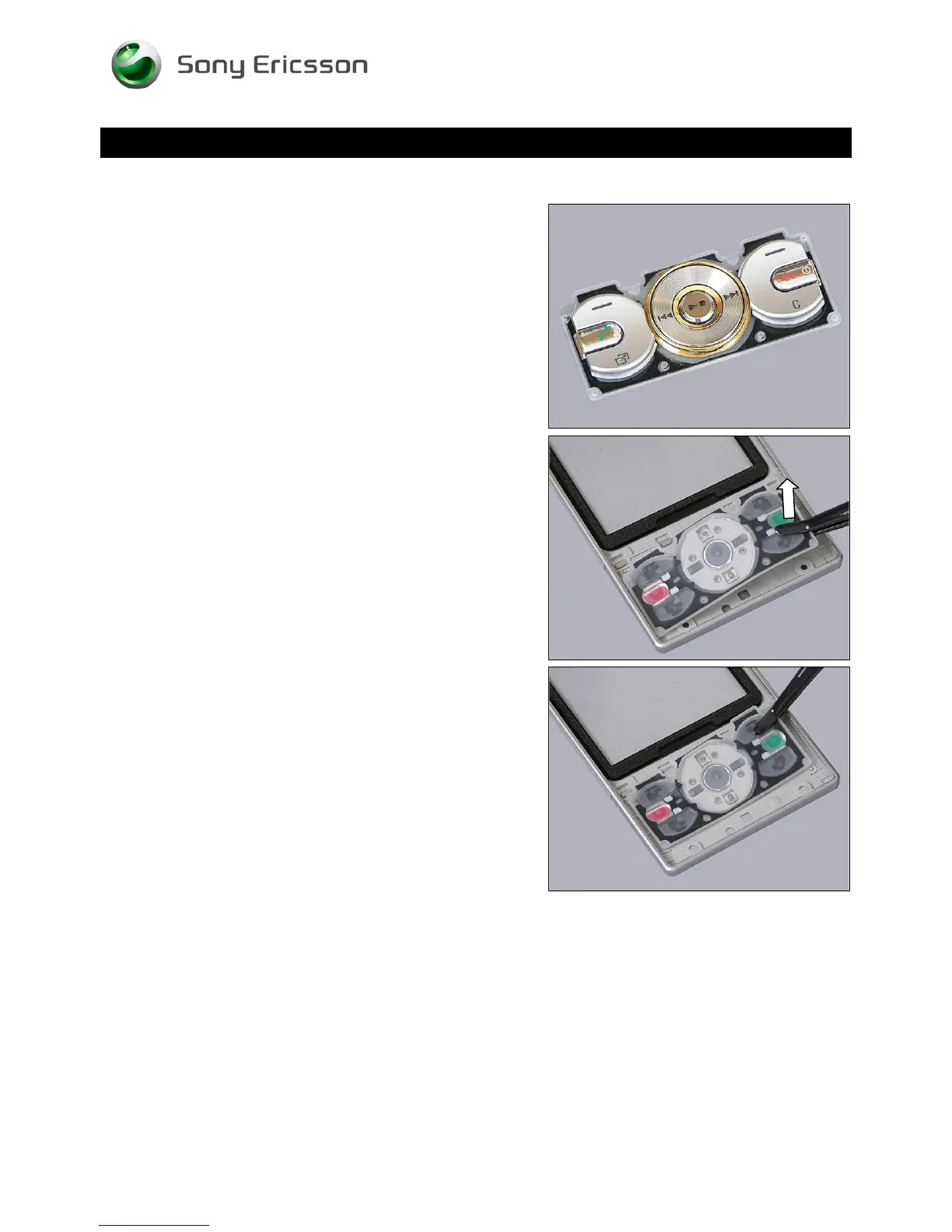

Turn the Front Cover upside/down and remove the
Navigation Keypad.
INSTALLATION
Place the Navigation Keypad in the cavity of the Front Cover
with the red and green buttons as shown in picture.
