Working Instructions (mech)
1225-1010 Rev 1
Replacement

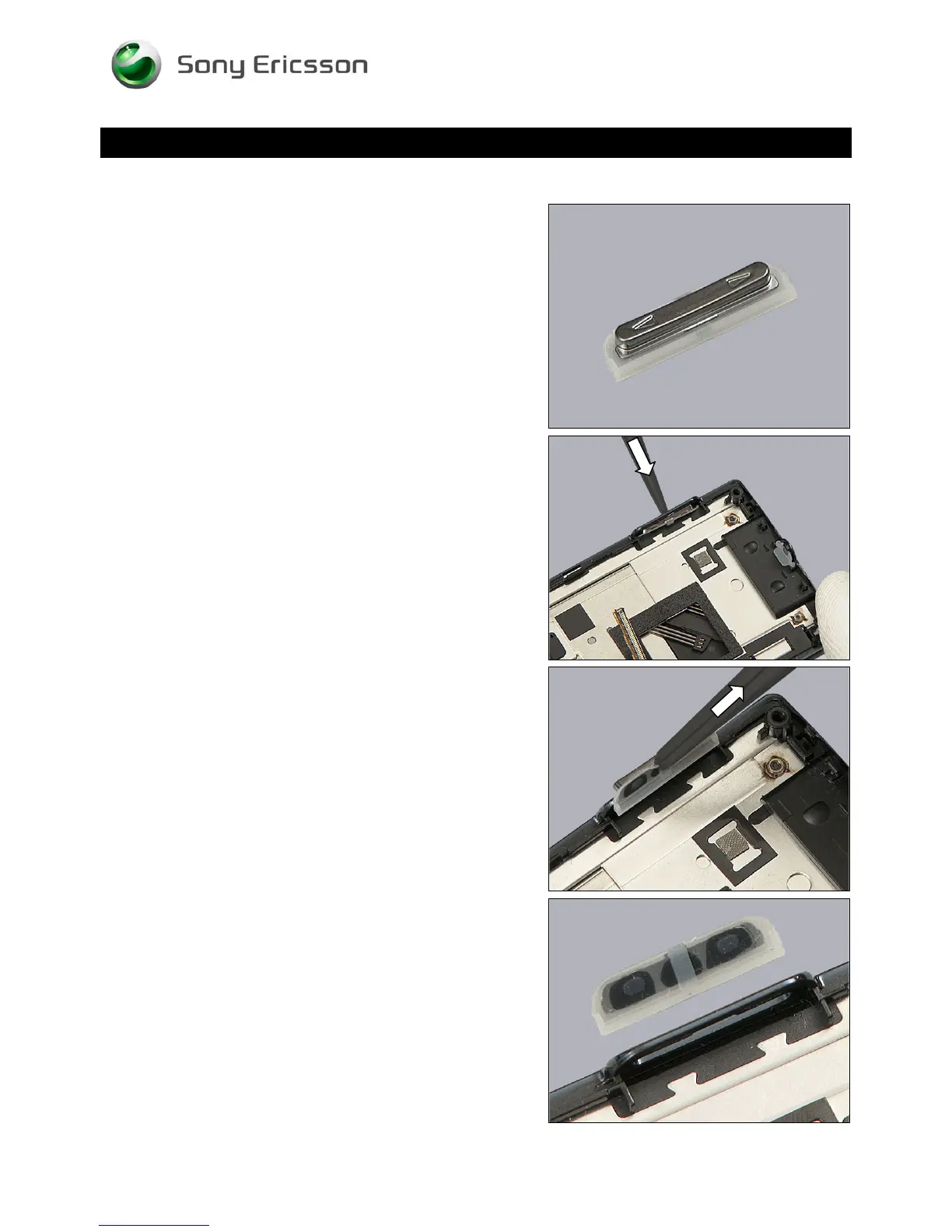

4.13 Volume Key
Follow the 3.1 – 3.4 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.7 – 5.10 Reassembly instructions!
REMOVAL
Push with the tweezers on the Volume Key from outside
until the key becomes released,
and remove it.
INSTALLATION
Note the orientation of the Volume Key to be installed.
© Sony Ericsson Mobile Communications AB – Company Internal
27(70)
