Working Instructions (mech)
1225-1010 Rev 1
Replacement

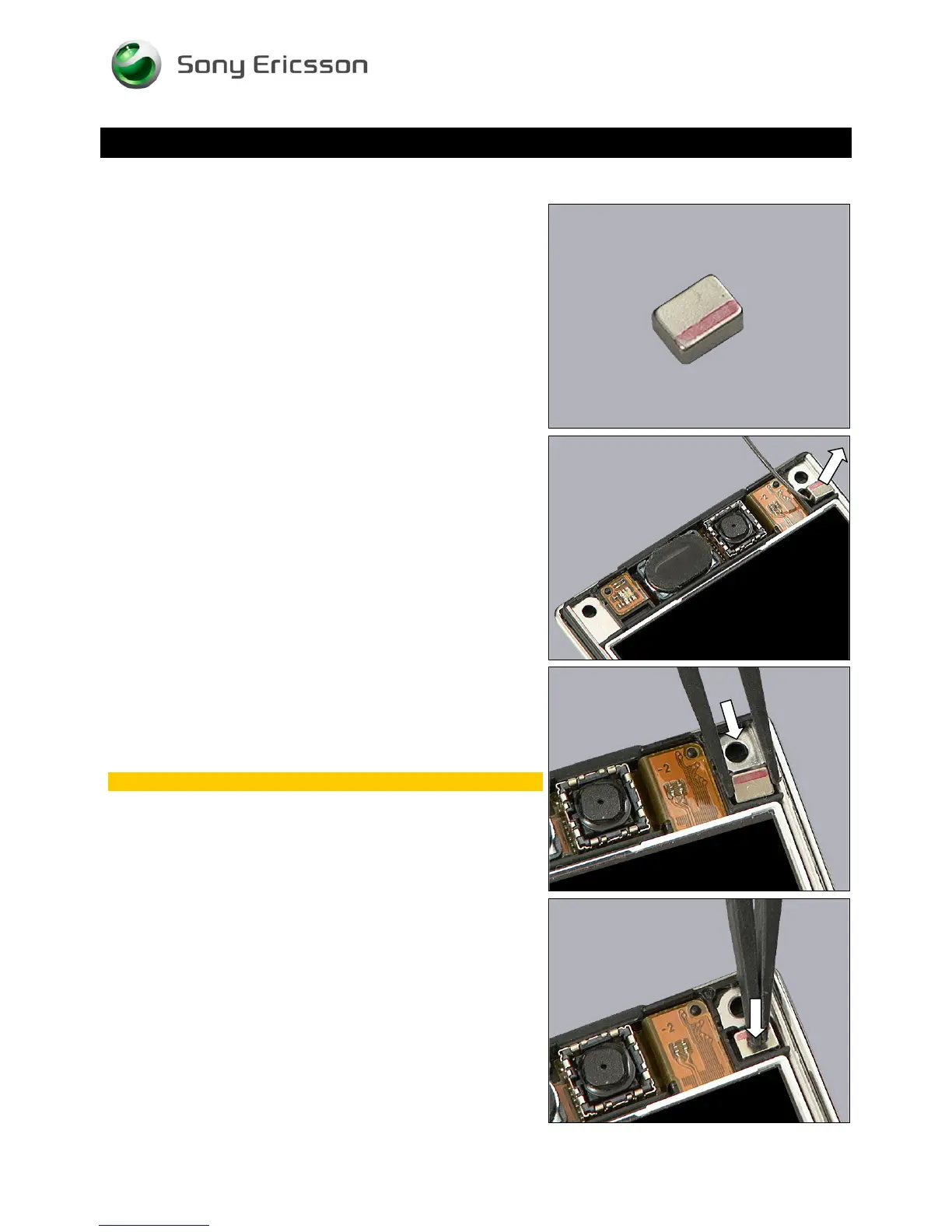

4.26 Magnet
Follow the 3.1 – 3.2 & 3.6 – 3.8 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.3 – 5.5 & 5.9 – 5.10 Reassembly instructions!
REMOVAL
Use the dentist hook to remove the Magnet from its cavity.
INSTALLATION
Note! Red stripe towards the top of the phone!
Use non-metallic tweezers to place the Magnet into its
cavity,
and press on top to secure its position.
