Working Instructions (mech)
1225-1010 Rev 1
Replacement

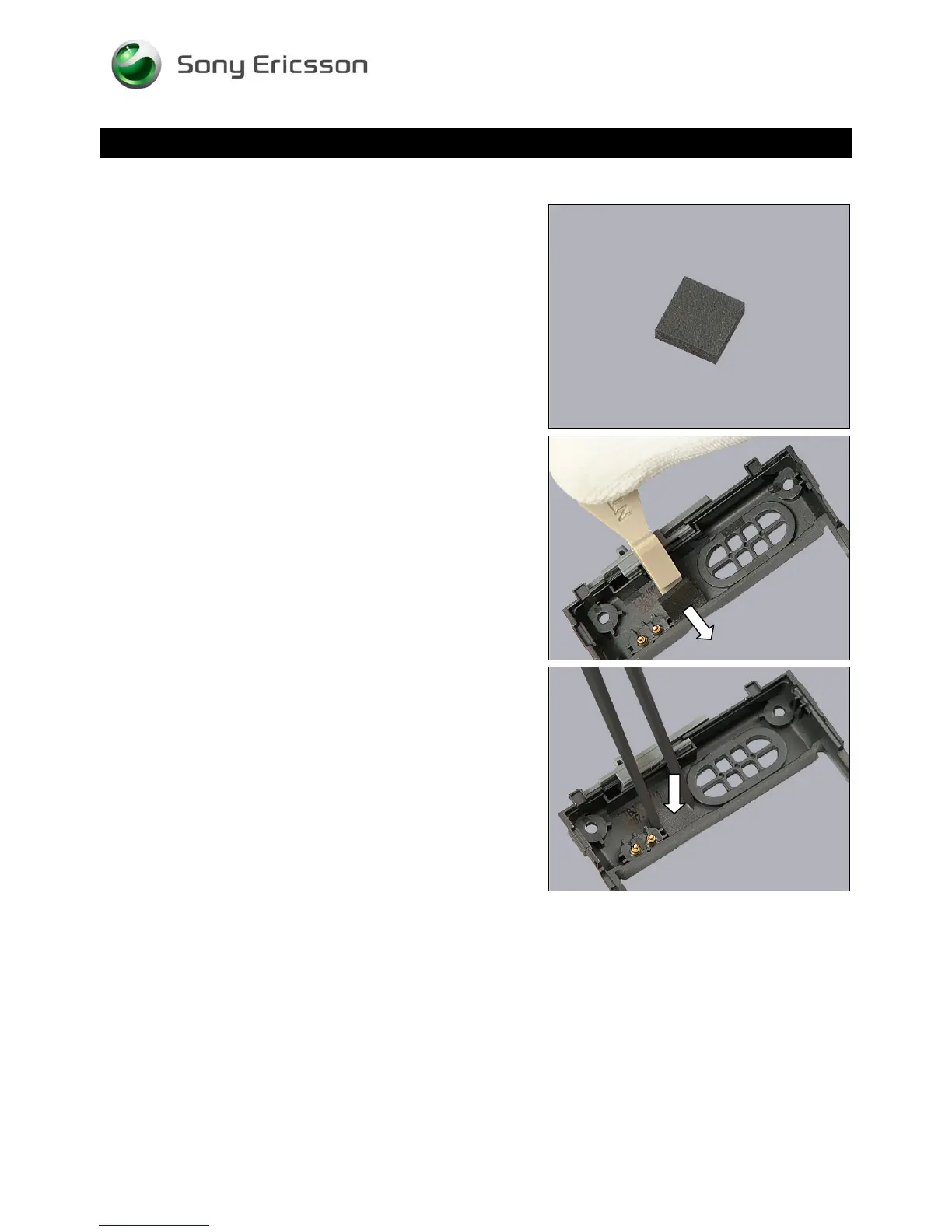

4.10 Cushion for Speaker Connector
Follow the 3.1 – 3.3 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.8 – 5.10 Reassembly instructions!
REMOVAL
Use the Front Opening Tool to peel off the Cushion from the
Rear Cover.
INSTALLATION
Place the Cushion in its proper position and press to make it
securely attached.
© Sony Ericsson Mobile Communications AB – Company Internal
