Sony Ericsson W705 - Slider Flex Module

Working Instructions (mech)
1225-1010 Rev 1
Replacement
4.31 Slider Flex Module
Follow the 3.1 – 3.4 & 3.6 – 3.10 Disassembly instructions!
Carry out the removal instructions as described below.
Follow the 4.32 Removal/Installation instructions.
Carry out the installation instructions as described below.
Follow the 5.1 – 5.5 & 5.7 – 5.10 Reassembly instructions!
REMOVAL

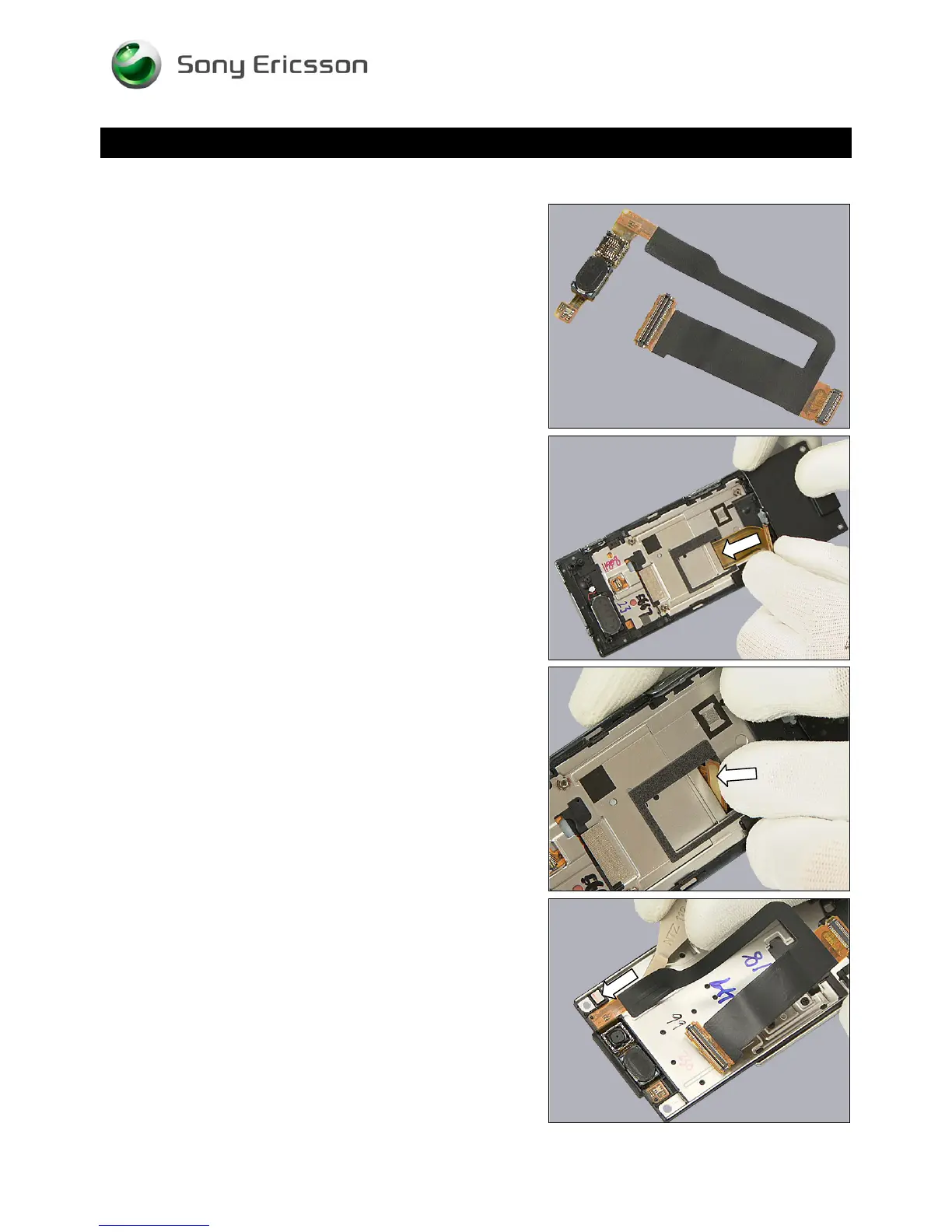

Push this end of the Slider Flex Module through the slot of
the Slider Unit.
Turn the BtB connector in a slight angle to be able to make
it pass through the slot.
Use the Front Opening Tool to release the Slider Flex
Module from the Sliding Unit.
