Sony Ericsson W705 - Loudspeaker

Working Instructions (mech)
1225-1010 Rev 1
Replacement
4.12 Loudspeaker
Follow the 3.1 – 3.3 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.8 – 5.10 Reassembly instructions!

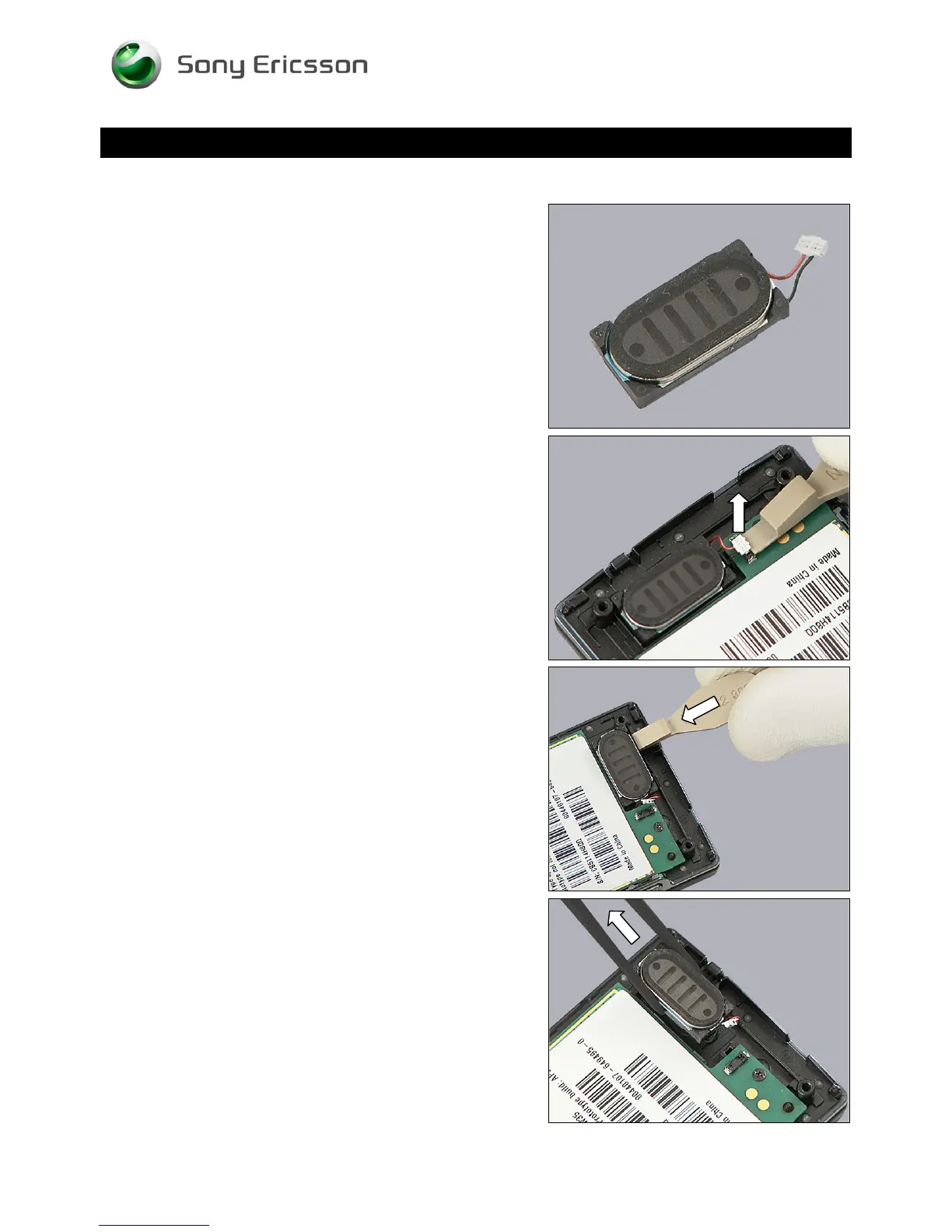

REMOVAL
Insert the Front Opening Tool underneath the connector as
shown in picture and pull upwards to disconnect the
Loudspeaker from the Main PBA.
Gently insert the Front Opening Tool underneath the
Loudspeaker to release it,
and remove it.
