Working Instructions (mech)
1225-1010 Rev 1
Replacement

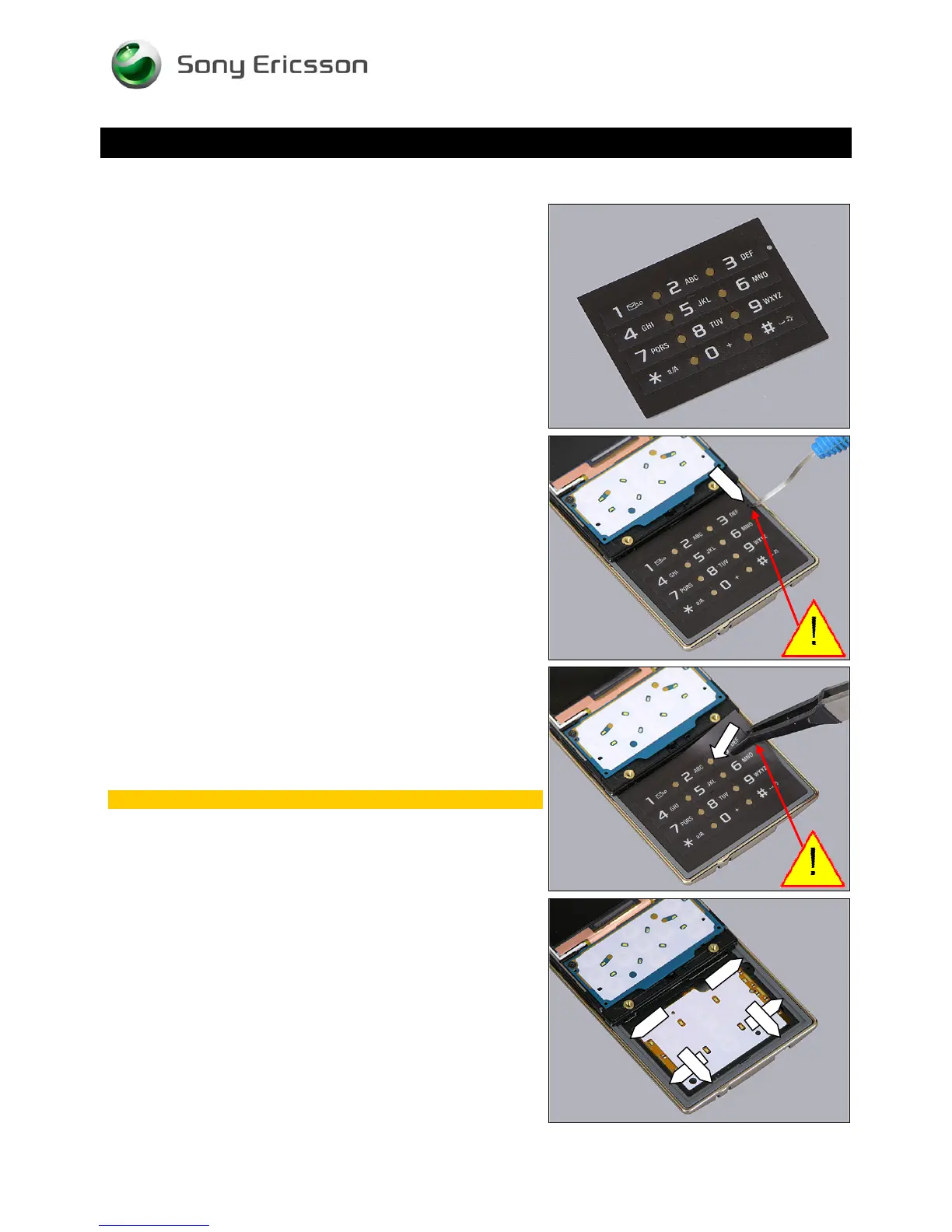

4.28 Keyboard
Follow the 3.1 – 3.2 & 3.6 – 3.8 Disassembly instructions!
Carry out the replacement as described below.
Follow the 5.3 – 5.5 & 5.9 – 5.10 Reassembly instructions!
REMOVAL
Carefully insert the dentist hook through this hole to release
the Keyboard in this corner
Gently peel the Keyboard off the Key Flex Module by using
the tweezers.
Scrap! Not to be reused!
INSTALLATION
The Keyboard to be installed should be placed against the
borders as indicated by the pointers.
© Sony Ericsson Mobile Communications AB – Company Internal
48(70)
