Working Instructions (mech)
1225-1010 Rev 1

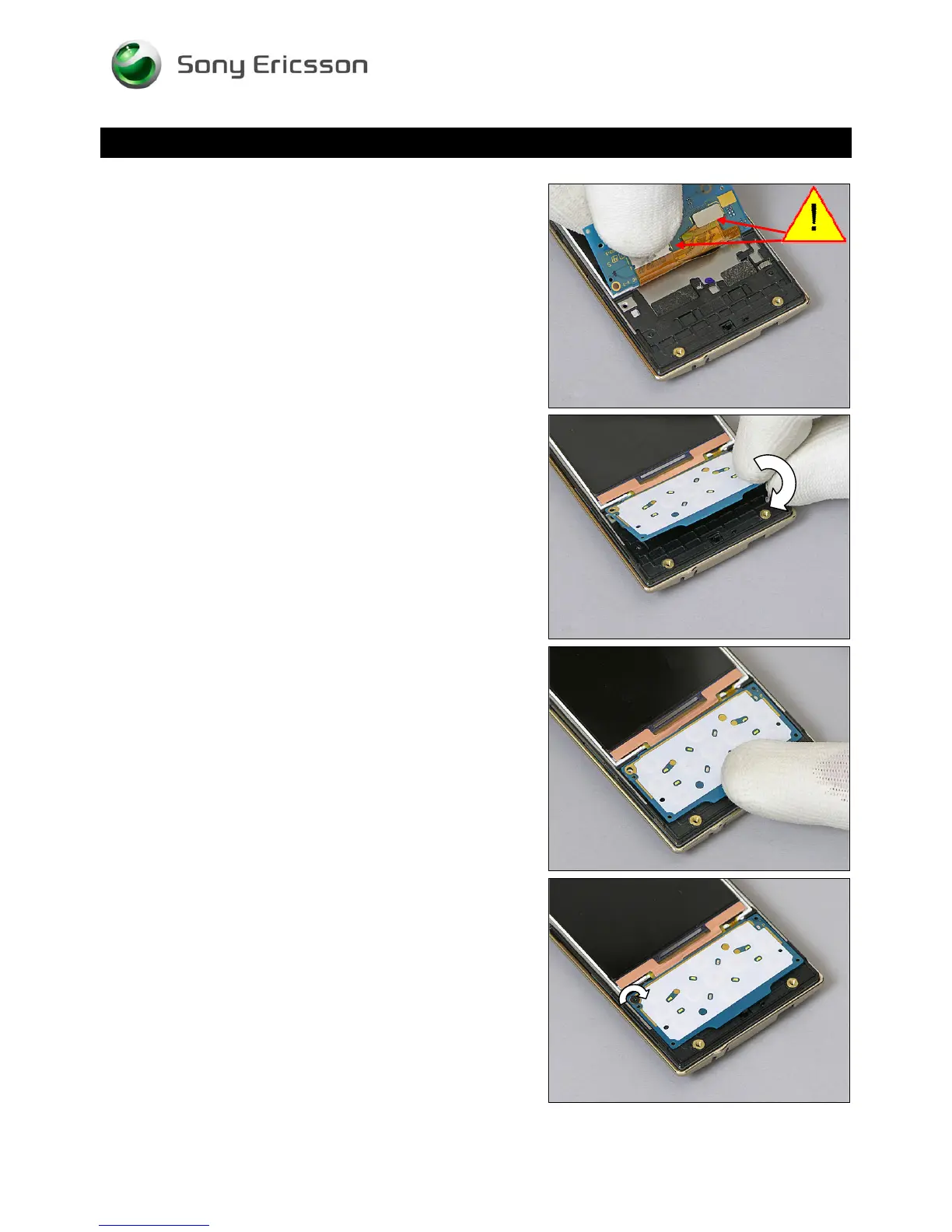

Reassembly
Use your fingers to connect the two BtB connectors.
Turn the Navigation Key Unit back to its horizontal position.
Press with your finger to secure its position.
Apply 10 Ncm torque when tightening the 1.6 mm black
screw with the JCIS bit.
© Sony Ericsson Mobile Communications AB – Company Internal
59(70)
