Working Instructions (mech)
1225-1010 Rev 1
Reassembly

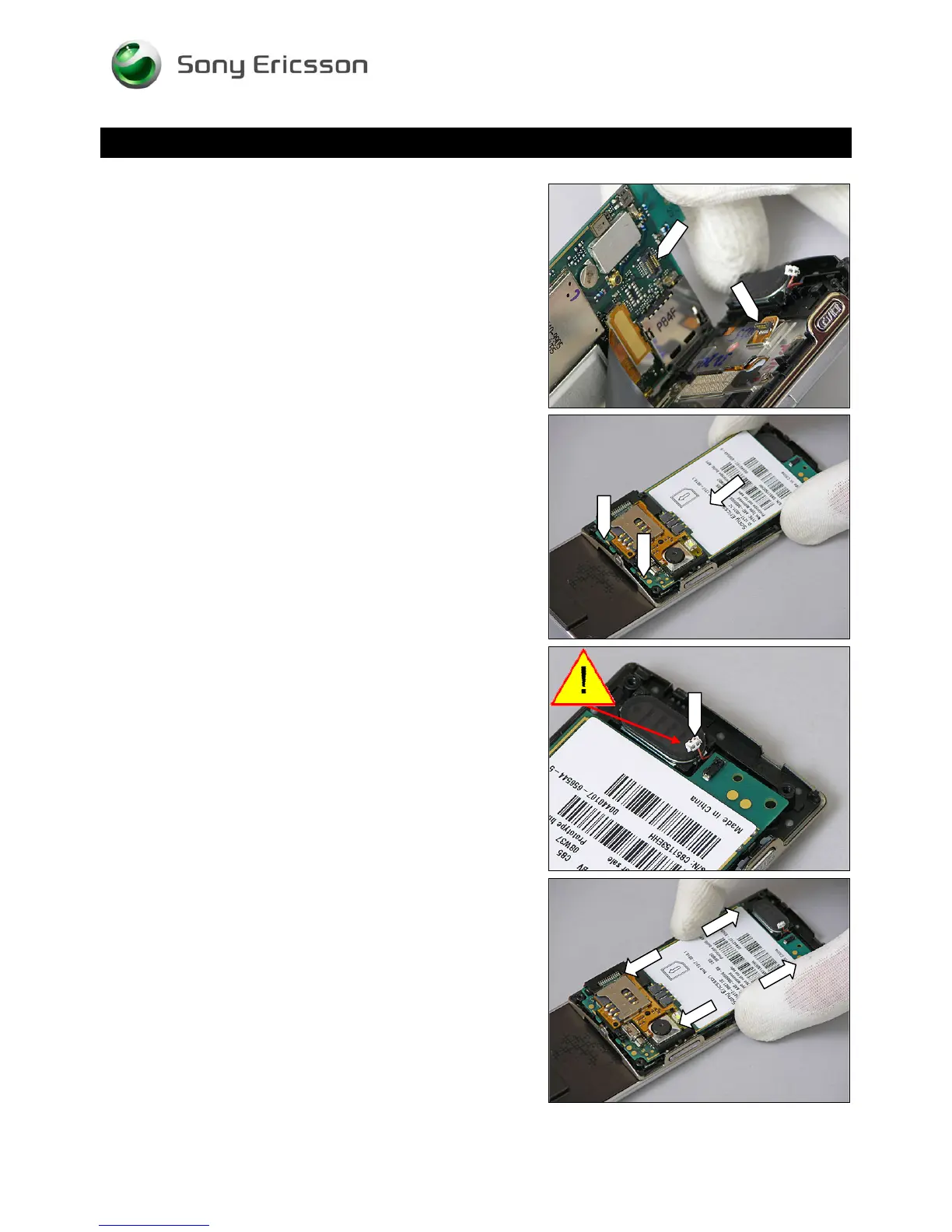

There is one more BtB connector to be connected to the
Main PBA, but this is done by itself when the Main PBA is
secured to the Slider Unit.
Hold the Main PBA in a slight angle and insert it at the top
as indicated by the pointers and the arrow.
Before securing the Main PBA to the Slider Unit, check and,
if necessary, move the Loudspeaker connector/cables to
avoid that they become squeezed by the Main PBA.
Press on both sides of the PBA to secure it to the Slider
Unit.
