Do not hold the camera head while mounting the unit. There is a risk of damage or injury if the unit is dropped or falls.
Take care when wiring that electrical connectors and cables do not become short-circuited by the fall prevention wire rope.
The combined unit should be suspended alone (maximum estimated mass 3.5 kg (7 lb 11 oz)). To prevent the unit falling, do not
exceed the maximum expected mass.

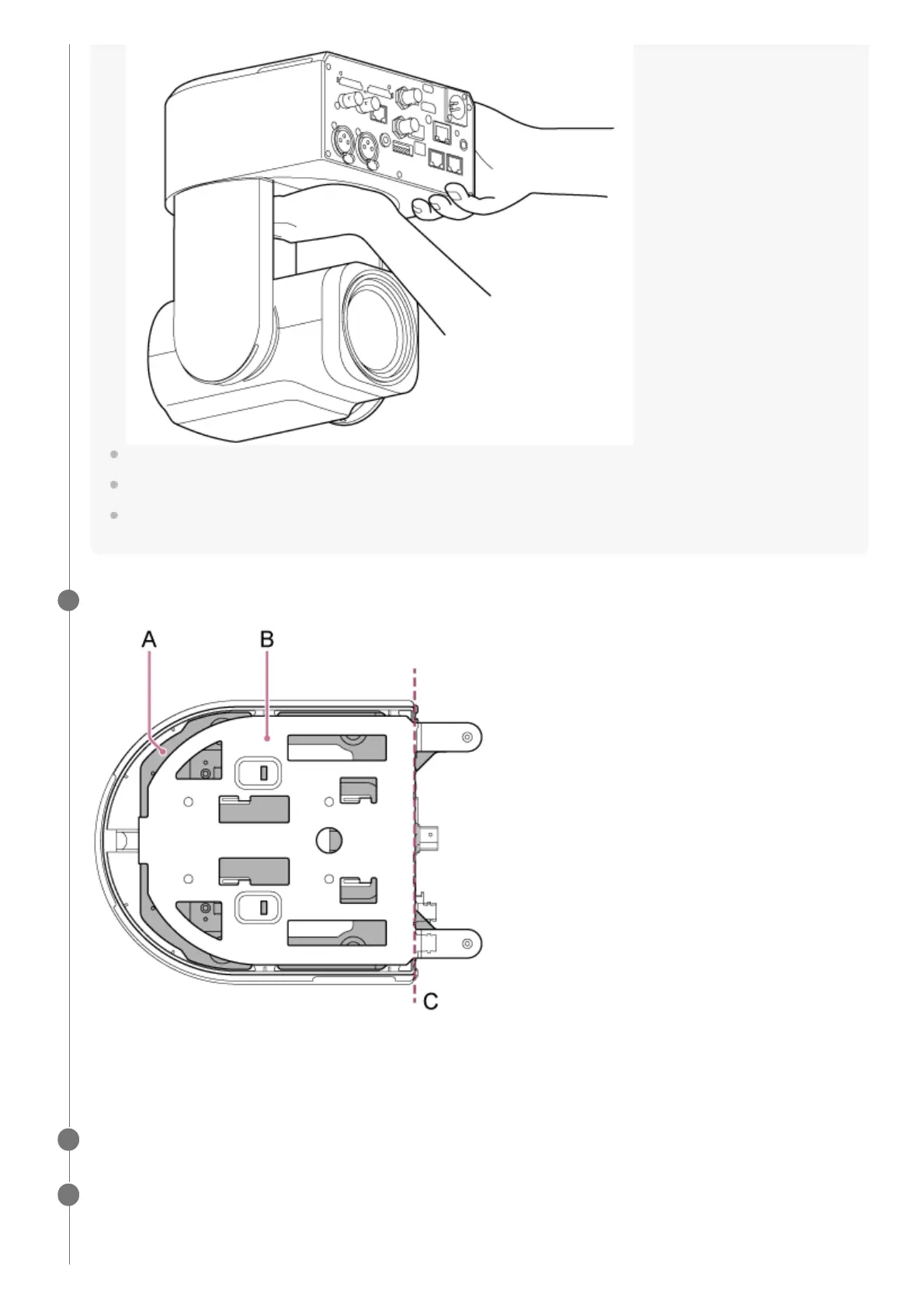

Align the edges of ceiling brackets (A) and (B).
A: Ceiling bracket (A) attached to the unit
B: Ceiling bracket (B)
C: Align the edges
6
Insert the protrusions of ceiling bracket (B) into the holes (4 places) of ceiling bracket (A).
7
Hook the fall prevention wire rope around the wire rope protrusion of ceiling bracket (A), push the unit in the
direction shown in the illustration approximately 10 mm to temporarily secure it in place.
8
