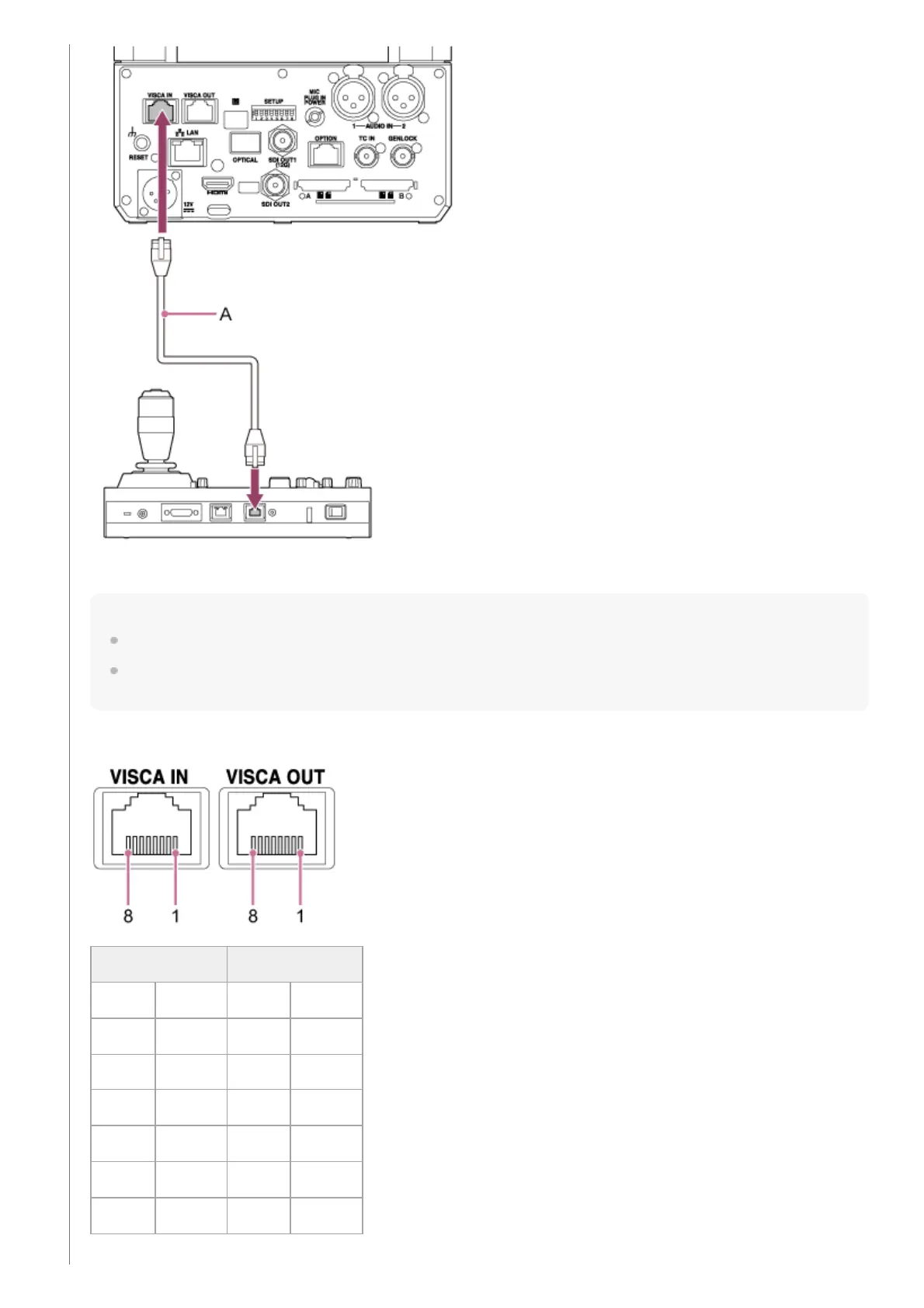

A: Commercially available network cable
Note
Use a straight cable for the network cable.
To connect a VISCA device that has its own connector using other than RM-IP500, create a connection cable by referring to the
pin layout shown below.
VISCA RS-422 pin layout (left: VISCA IN, right: VISCA OUT)
IN OUT
Pin No. Function Pin No. Function
1 TX− 1 RX−
2 TX+ 2 RX+
3 RX− 3 TX−
4 GND 4 GND
5 GND 5 GND
6 RX+ 6 TX+
