Sony HCD-CL5MD - Back Panel, Main Board; Amp Board, Power Transformer

17
HCD-CL5MD

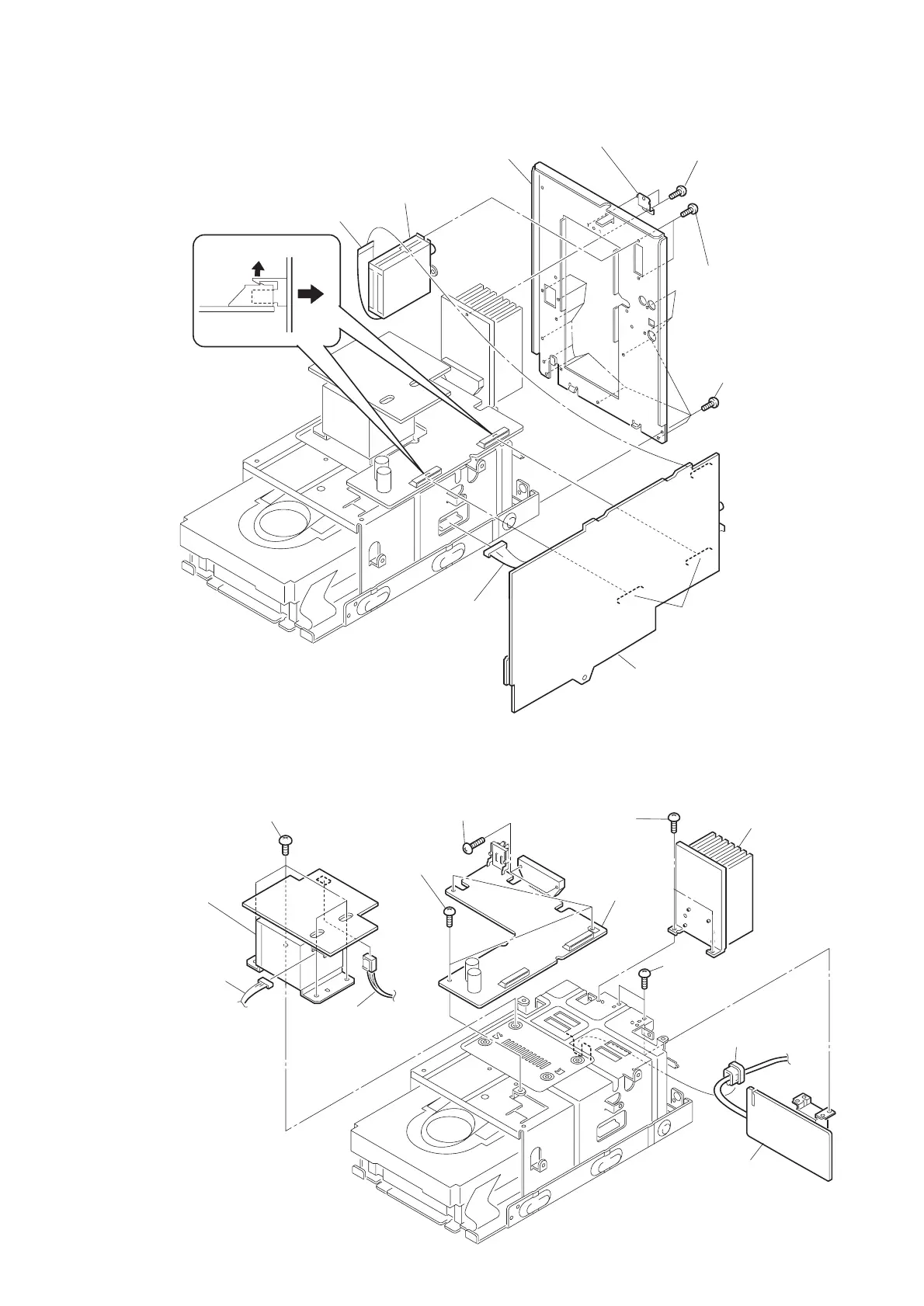

3-12. BACK PANEL, MAIN BOARD
3-13. AMP BOARD, POWER TRANSFORMER
1 Flat cable (15 core)
(CN502)
3 Blacket (Heat sink)
5 Back panel
7 Tuner
2 Two screws
(
+BVTP 3
×
8 )
4 Thirteen screws
(
+BVTP 3
×
8 )
6 Two screws
(
+BVTP 3
×
8 )
8 Two connector
(CN101, CN251
)
9 Connector
(CN701)
q; Main board
Main board
1 Connector
(CN901)
2 Connector
(CN902)
3 Four screws
(+BVTT 4
× 8)
6 Three screws
(
+BVTP 3 × 8 )
5 Two screws
(
+BVTP 3 × 16 )
7 Amp board
8 Two screws
(+BVTP 3
× 8)
4 Power
transformer
9 Heat sink
q; Two screws
(
+BVTP 3 × 8 )
qs Cord bushing
qa Sub power board
