HCD-CL5MD

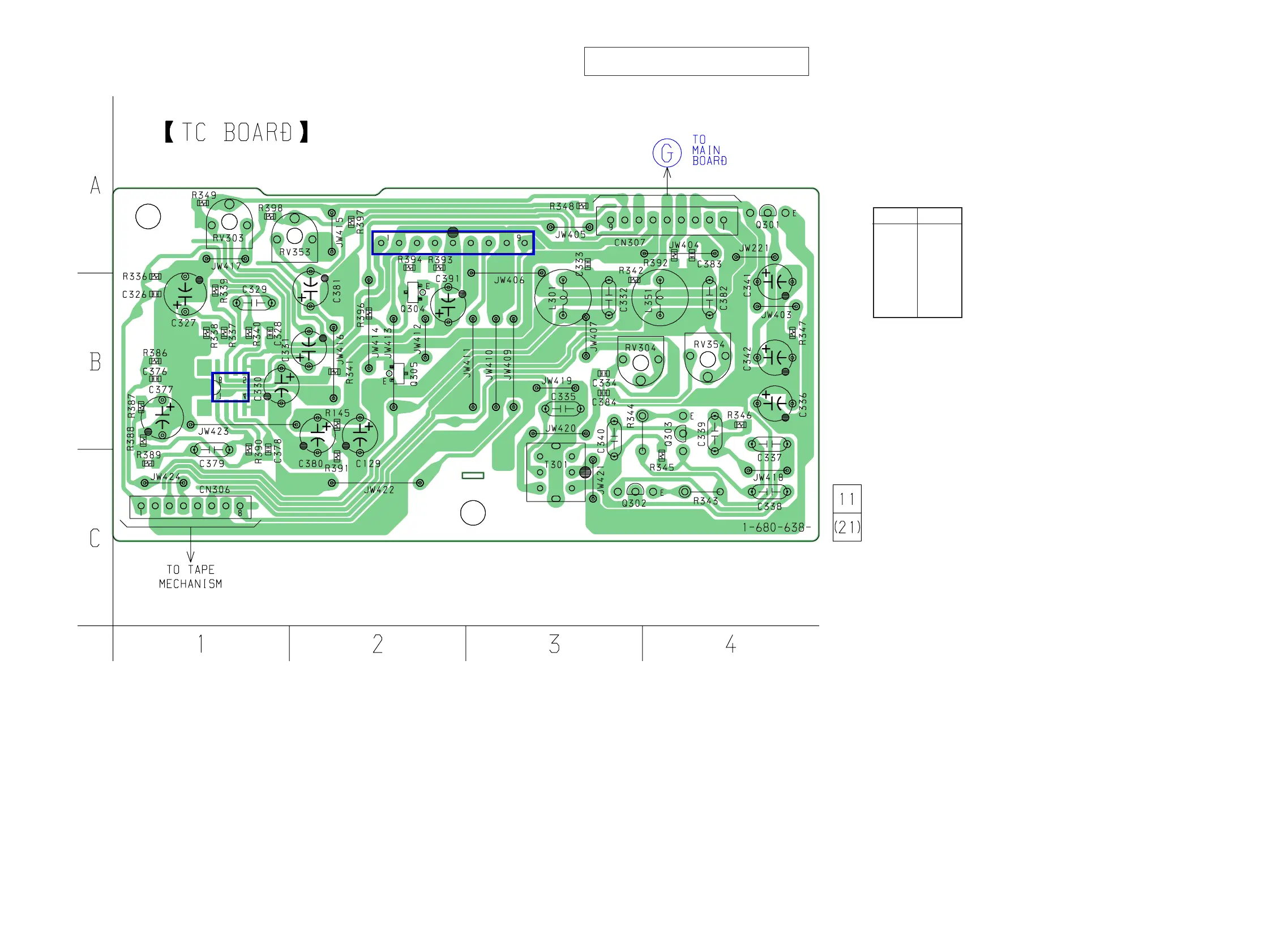

7-17. PRINTED WIRING BOARD TC SECTION
IC302
IC304
(Page 51)
Ref. No. Location
IC302 A-3
IC304 B-1
Q301 A-4
Q302 C-3
Q303 B-4
Q304 B-2
Q305 B-2
• Semiconductor
Location
• See page 45 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
