Sony HCD-CL5MD - CD Mechanism Disassembly

18
HCD-CL5MD

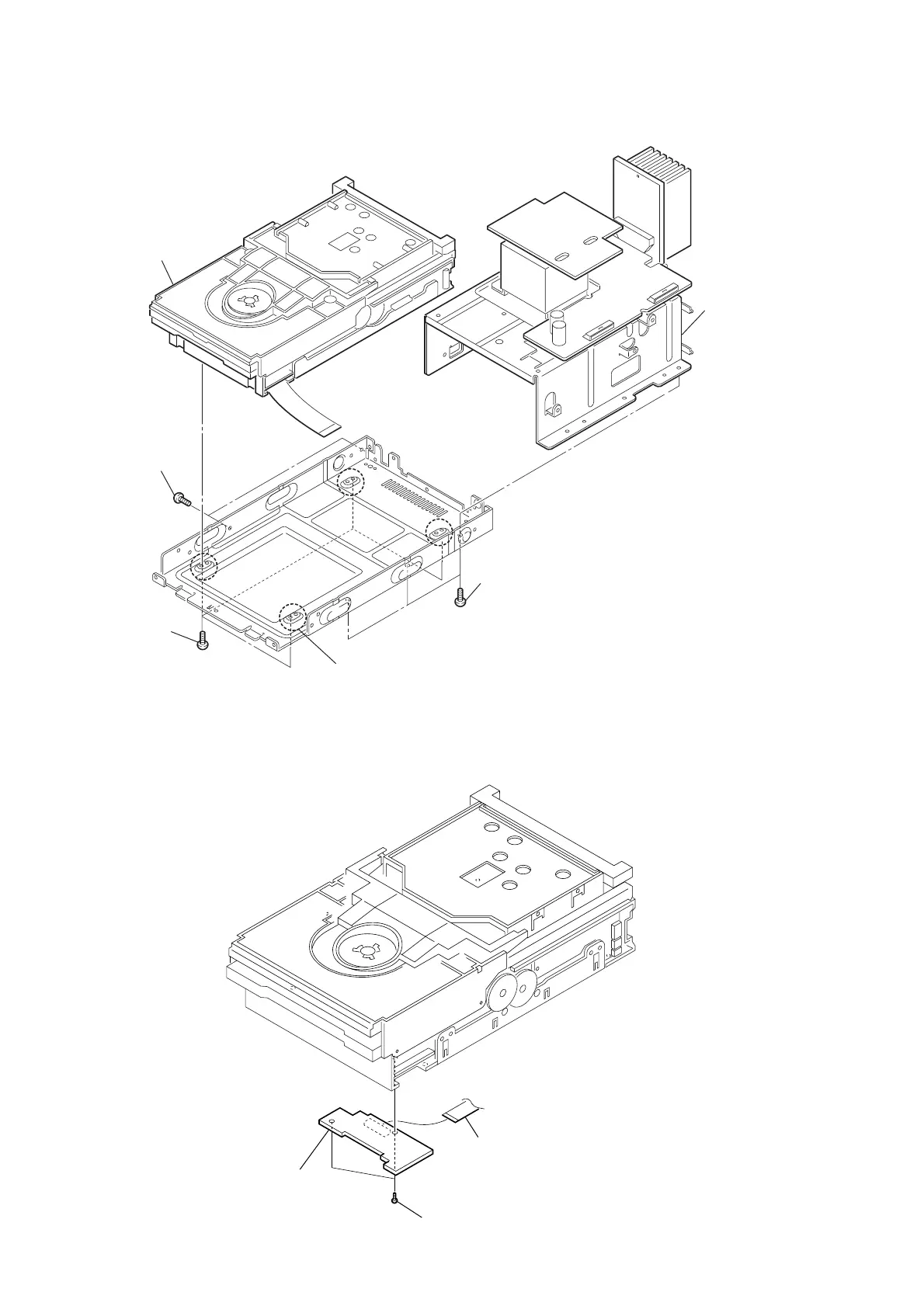

3-14. CD MECHANISM
3-15. RELAY BOARD
3 Chassis assy
5 CD mechanism deck
(CDM63B)
2 Two screws
(
+BVTP 3 × 8)
1 Three screws
(
+BVTP 3 × 8 )
4 Four screws
(
+BVTP 3 × 8 )
Note: When installing the CD mechanism, the four bosses
must be aligned with the specified positions.
3 RELAY board
2 Two Screws
( +BTTP M2.6 )
1 Flat cable (21 core)
(CN792)
