Sony HCD-CL5MD - Schematic Diagram Main Section (2;2)

5353
HCD-CL5MD

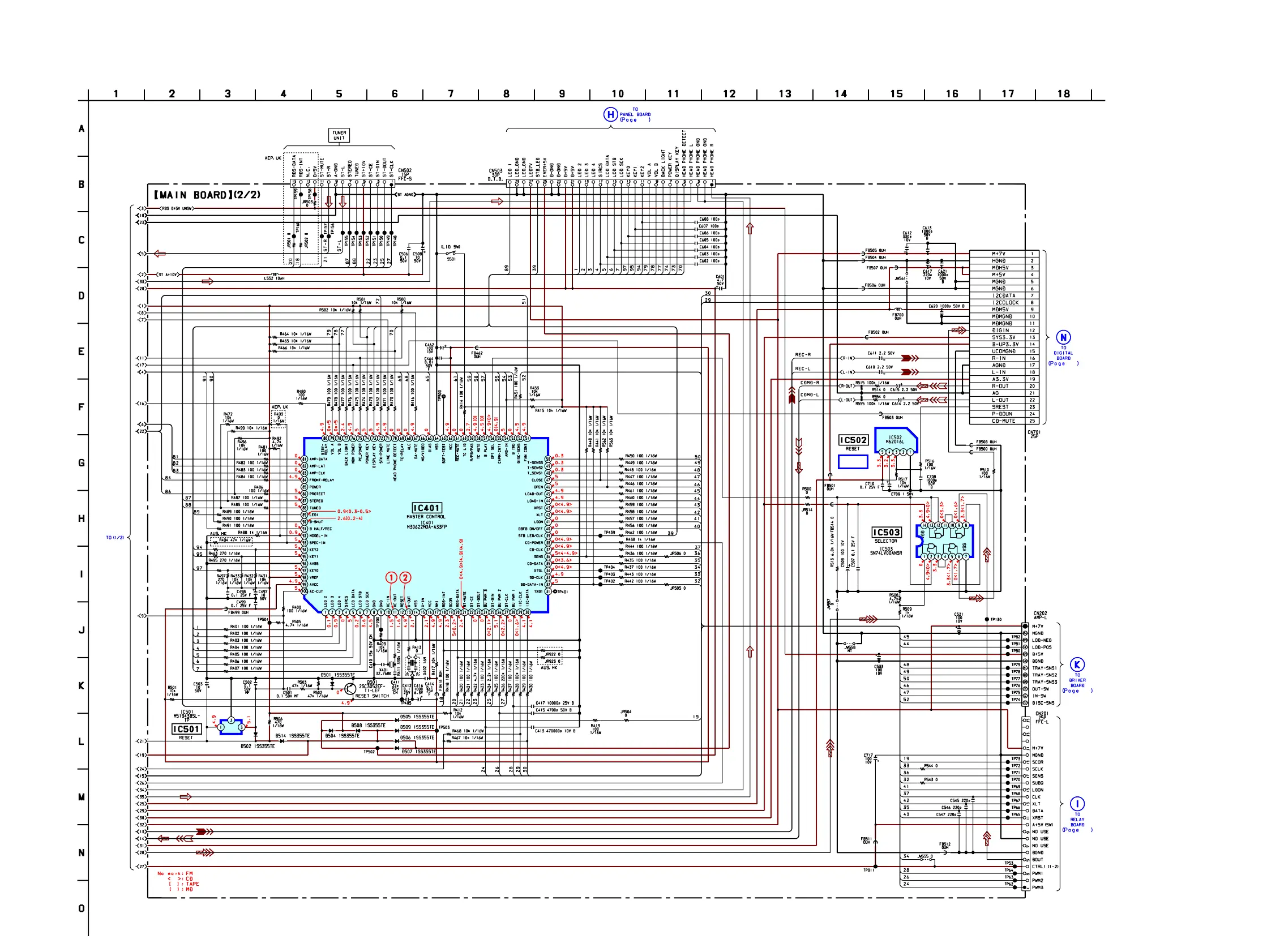

7-5. SCHEMATIC DIAGRAM MAIN SECTION (2/2)
• See page 74 for Wavefoms.
• See page 83 for IC Pin Function Description.
• See page 85 for IC Block Diagrams.
68
62
56
68
IC B/D
