Sony HCD-CL5MD - Printed Wiring Board Trans Section

7171
HCD-CL5MD

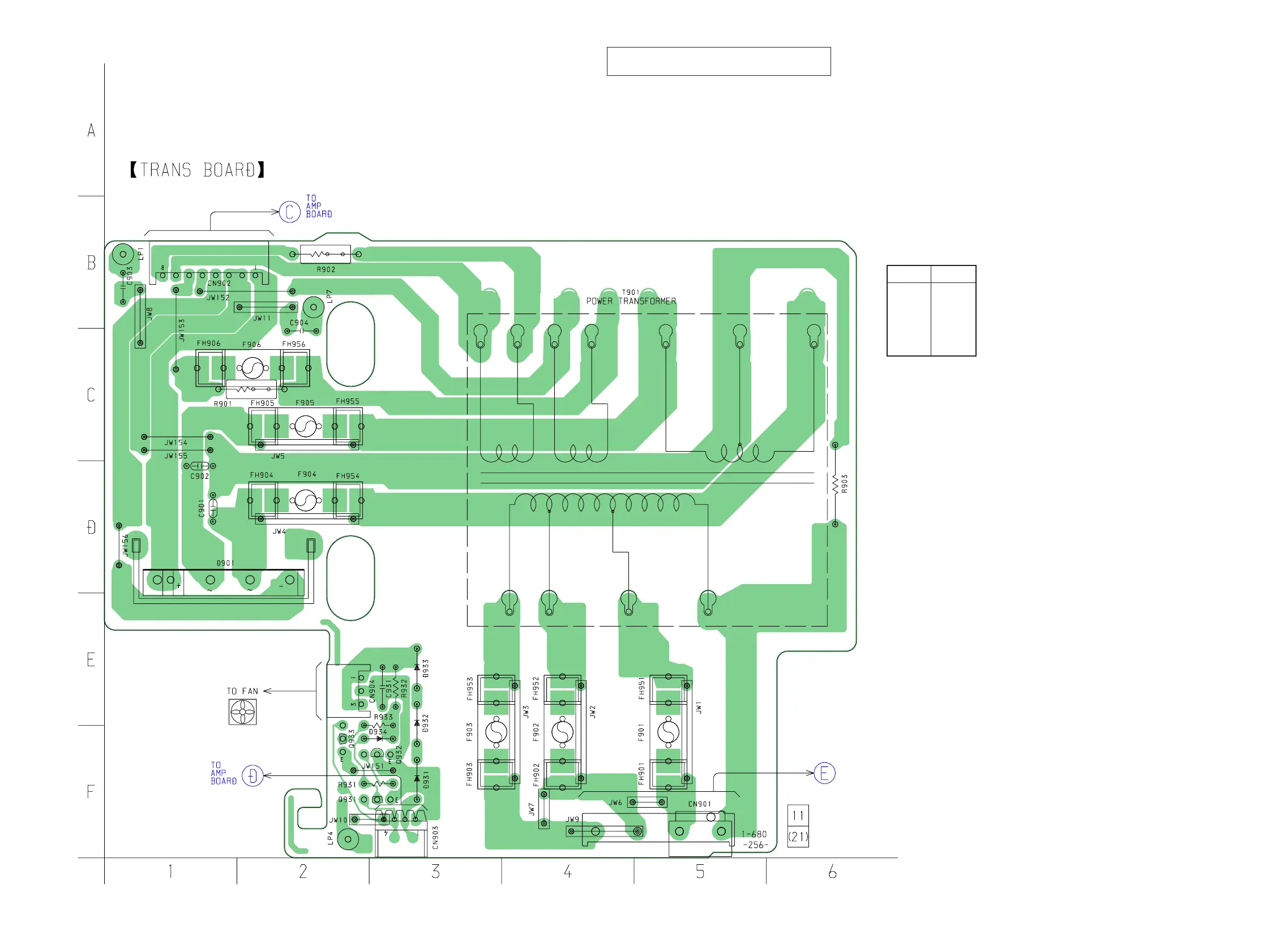

7-23. PRINTED WIRING BOARD TRANS SECTION
Ref. No. Location
D901 D-1
D934 F-3
Q931 F-3
Q932 F-3
Q933 F-2
• Semiconductor
Location
• See page 45 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
(Page 67)
(Page 67)
TO
SUB POWER BOARD
AND
VOL SEL BOARD
(Page 73)
