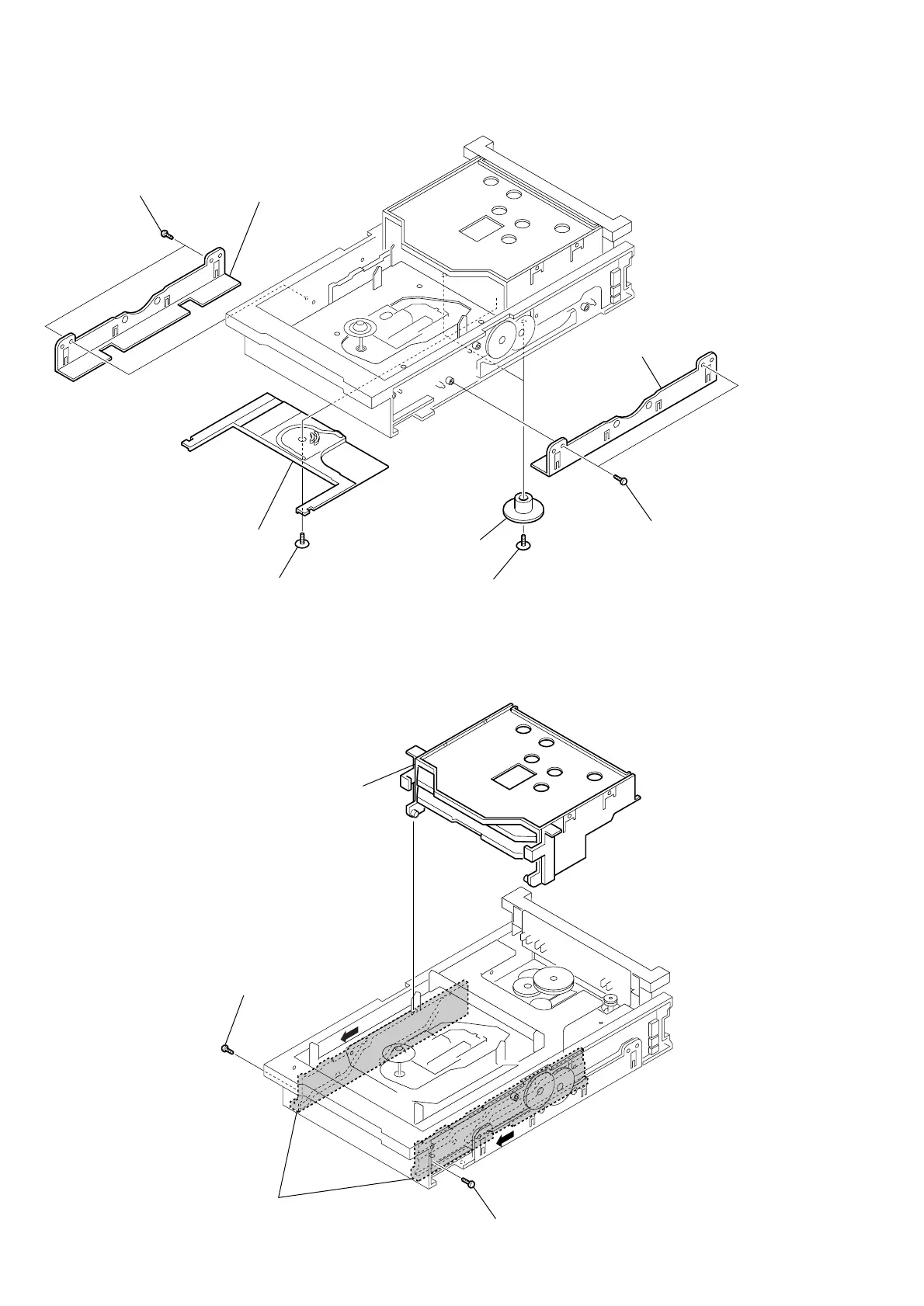

3-22. SLIDER (LOADING), GEAR (SLIDER)
3-23. STOCKER ASSY
6 Slider (LOADING)
2 Bracket (retainer)
1 Two screws (+BTTP M2.6)
4 Bracket (retainer)
3 Two screws (+BTTP M2.6)
8 Two gears (SLIDER)
7 Two floating screws
5 Floating screw
2 Slide the slider (BU.L),
slider (BU.R) in the direction of
arrow A at the full.
A
A
3 Stocker assy
1 Screw (+BTTP M2.6)
1 Screw (+BTTP M2.6)
