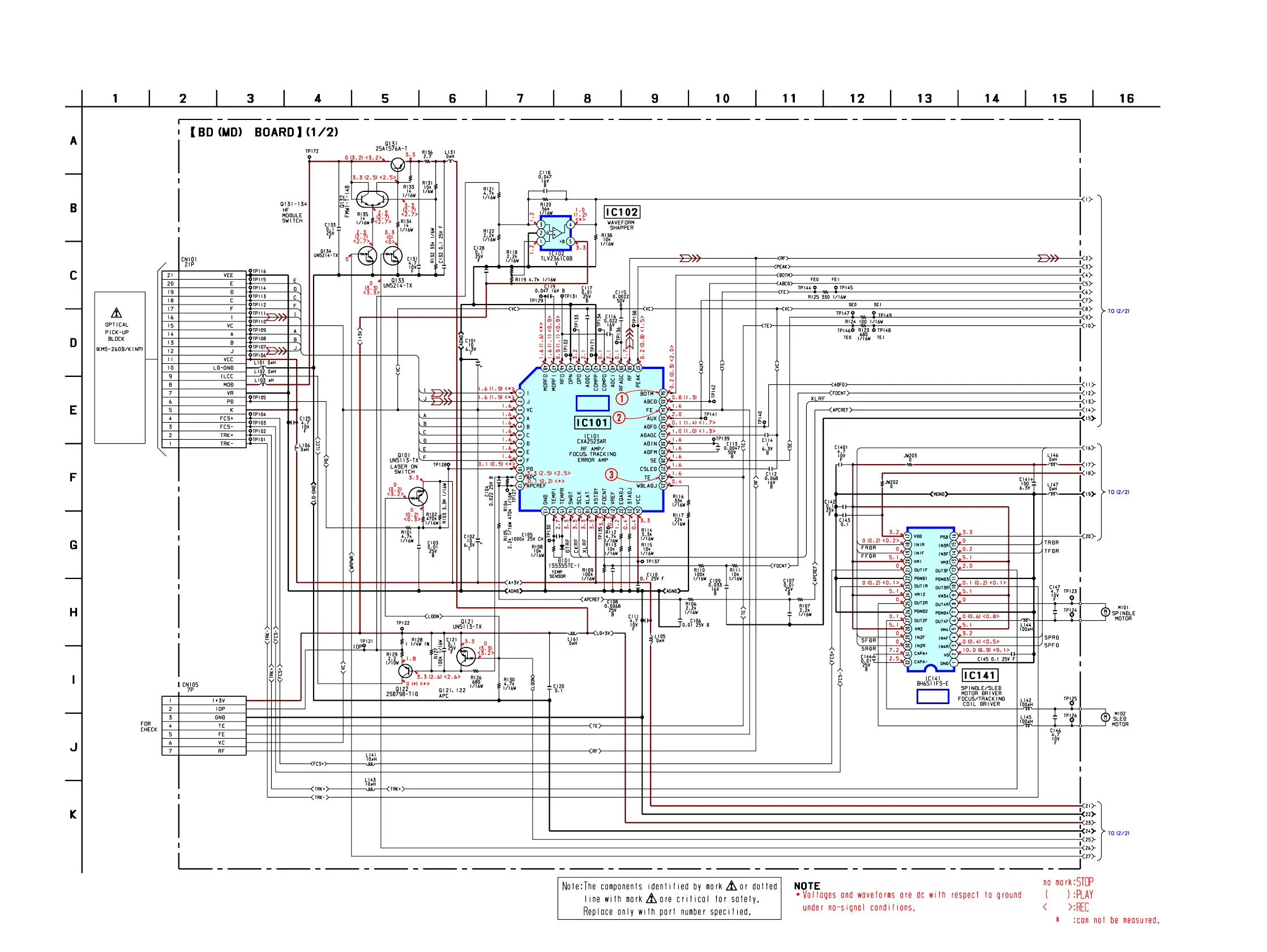

7-10. SCHEMATIC DIAGRAM MD SECTION (1/2)
• See page 74 for Wavefoms.
• See page 77 for IC Pin Function Description.
• See page 86, 87 for IC Block Diagrams.
