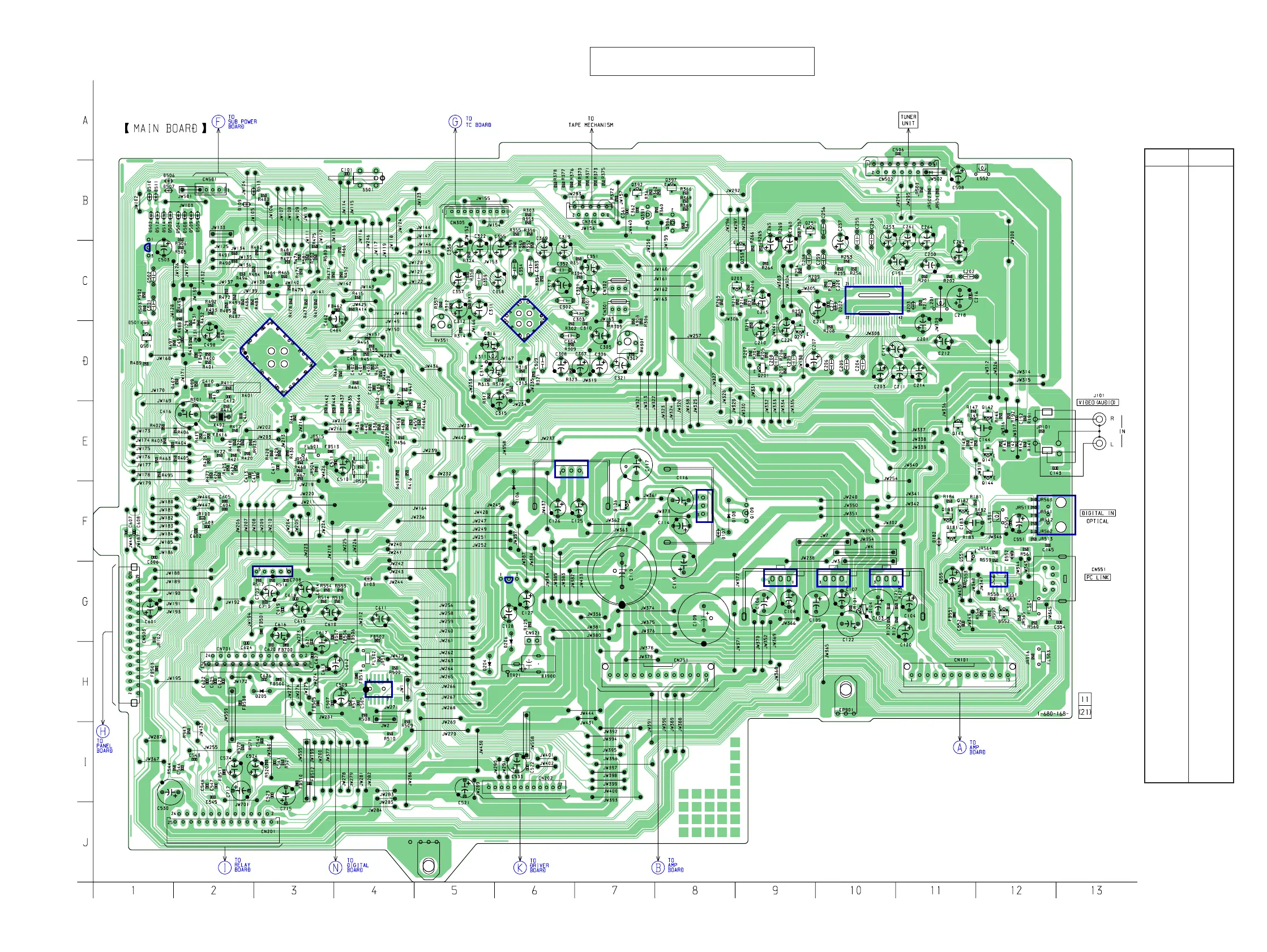

7-3. PRINTED WIRING BOARD MAIN SECTION
IC401
IC301
IC501
IC502
IC503
IC110
IC108
IC201
IC103 IC102 IC101
IC105
IC552
IC551
(Page 73)
(Page 65)
(Page 61)
(Page 69)
(Page 69)
(Page 57)
(Page 67)
(Page 67)
IC504
IC504
EP902
EP902
Ref. No. Location
D103 G-4
D106 F-6
D107 F-8
D108 F-8
D182 F-11
D202 C-10
D203 C-11
D204 H-5
D205 H-3
D206 G-6
D501 D-1
D502 B-1
D504 B-2
D505 B-2
D506 B-1
D507 B-1
D508 B-2
D509 B-2
D511 B-1
D512 B-1
D513 B-3
D514 B-1
IC101 G-10
IC102 G-10
IC103 G-9
IC105 F-8
IC108 E-6
IC110 G-6
IC201 C-10
IC301 D-6
IC401 D-3
IC501 C-1
IC502 G-3
IC503 H-4
IC551 F-13
IC552 G-12
Q104 G-10
Q106 F-7
Q109 F-9
Q181 F-11
Q182 F-11
Q183 F-11
Q201 D-9
Q203 C-9
Q251 B-9
Q253 C-9
Q271 D-9
Q391 B-7
Q392 B-7
Q396 B-8
Q397 B-8
Q501 D-1
Q551 F-11
Q552 G-12
• Semiconductor
Location
• See page 45 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
