HCD-CL5MD

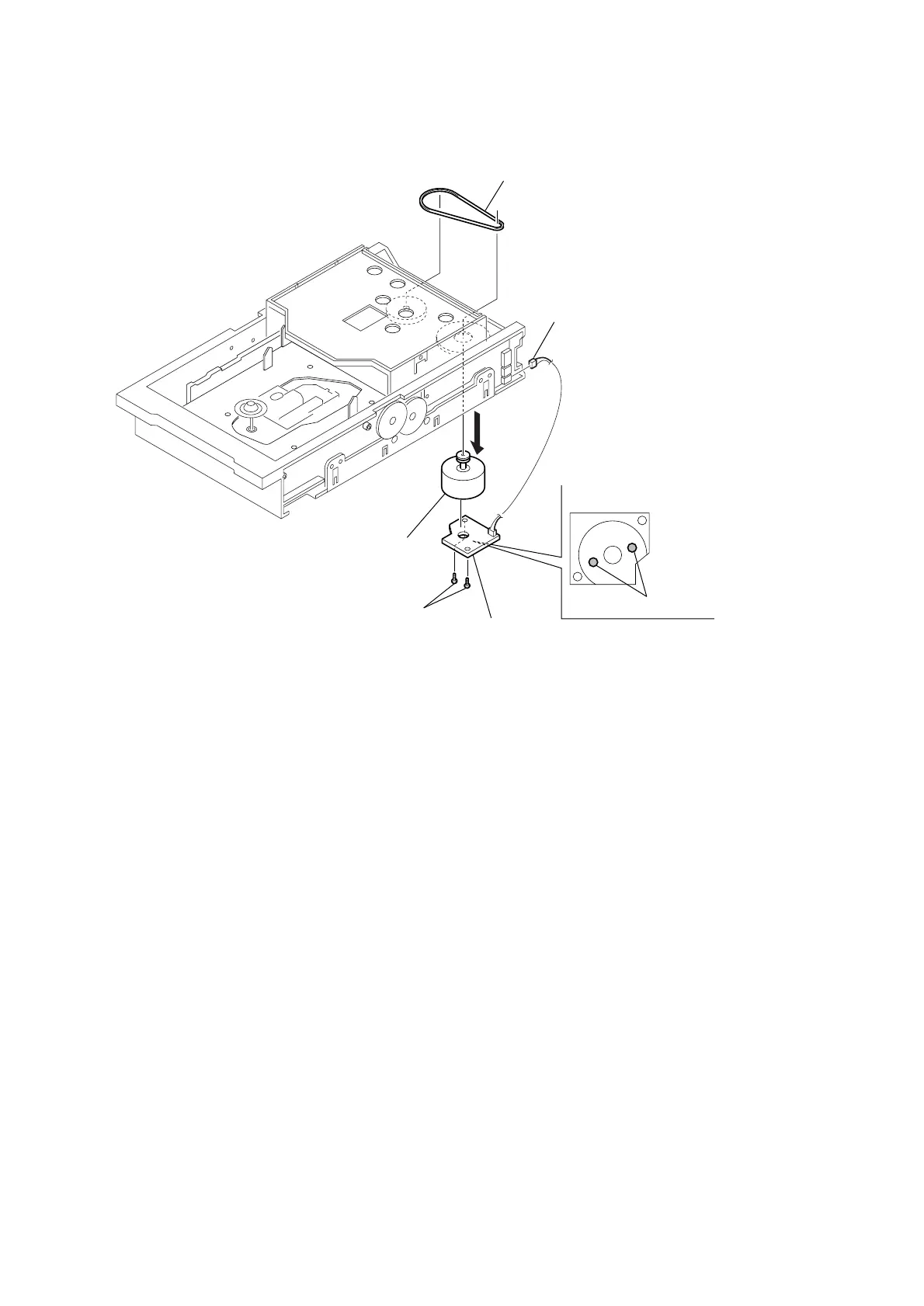

3-26. MOTOR ASSY (M721), MOTOR BOARD
4 Two screws (+BTTP M2.6)
2 Connector (CN702)
7 Motor assy (M721)
5 Motor board
6
1 Belt
3 Remove two solders.
Motor board bottom view
