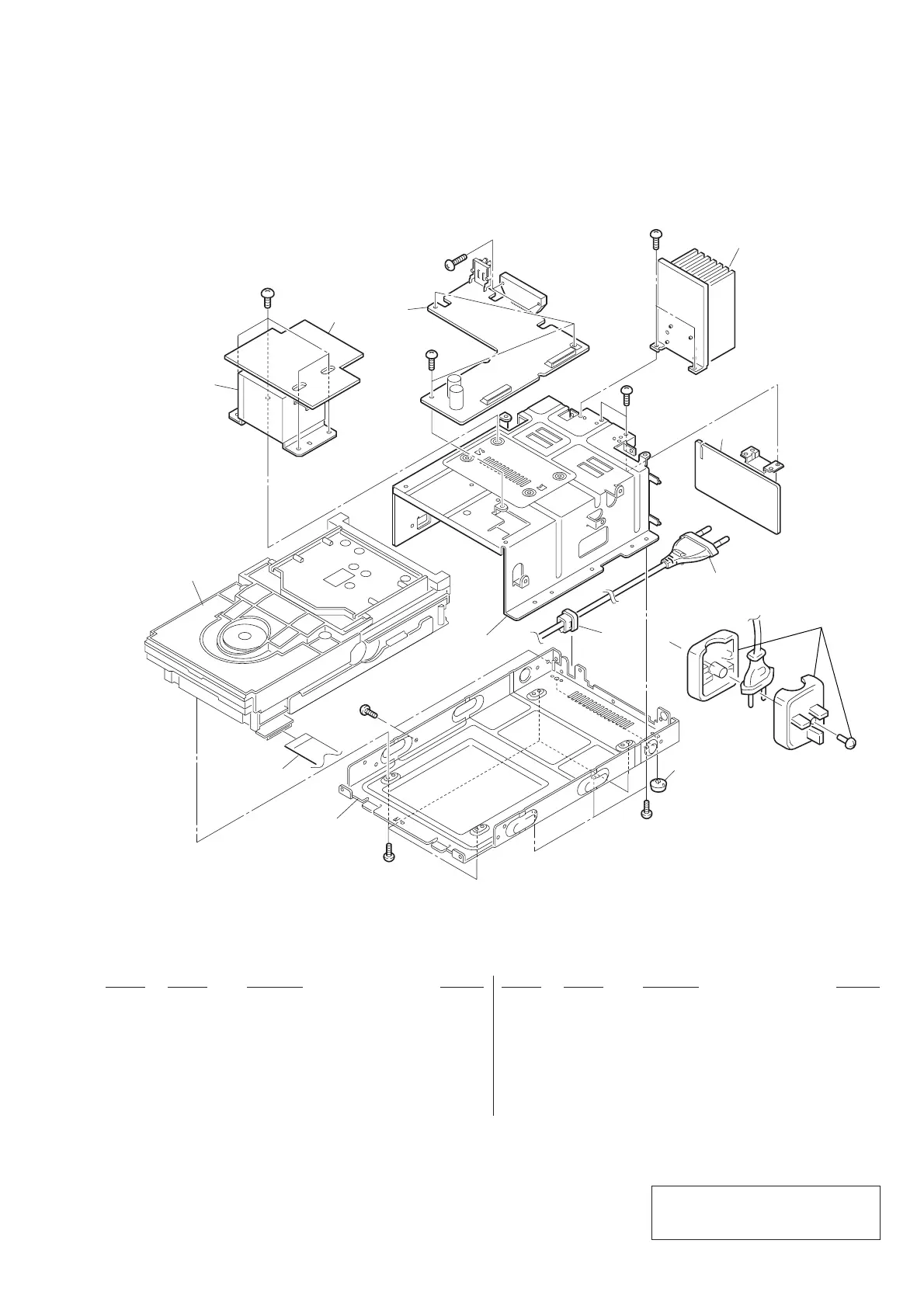

8-3. CHASSIS SECTION
101 1-773-214-11 WIRE (FLAT TYPE) (25 CORE)
103 1-680-256-11 TRANS BOARD
107 A-4475-465-A AMP BOARD, COMPLETE (AEP,UK)
107 A-4475-485-A AMP BOARD, COMPLETE (AUS,HK)
108 1-680-257-11 SUB POWER BOARD
0 109 1-575-651-11 CORD, POWER (AEP,HK)
0 109 1-783-203-11 CORD, POWER (AUS)
0 109 1-790-226-11 CORD, POWER (UK)
* 110 3-703-244-00 BUSHING (2104), CORD
111 4-965-822-01 FOOT
0 112 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
0 T901 1-435-833-11 TRANSFORMER, POWER (AEP,UK)
0 T901 1-435-834-11 TRANSFORMER, POWER (AUS,HK)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1#
1#
#5
#4
1#
1#
1#
1#
not
supplied
not
supplied
CD MECHANISM
107
103
108
109
110
111
101
not
supplied
T901
112
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
