Sony HCD-CL5MD - MD Mechanism Deck Section-2

93
HCD-CL5MD

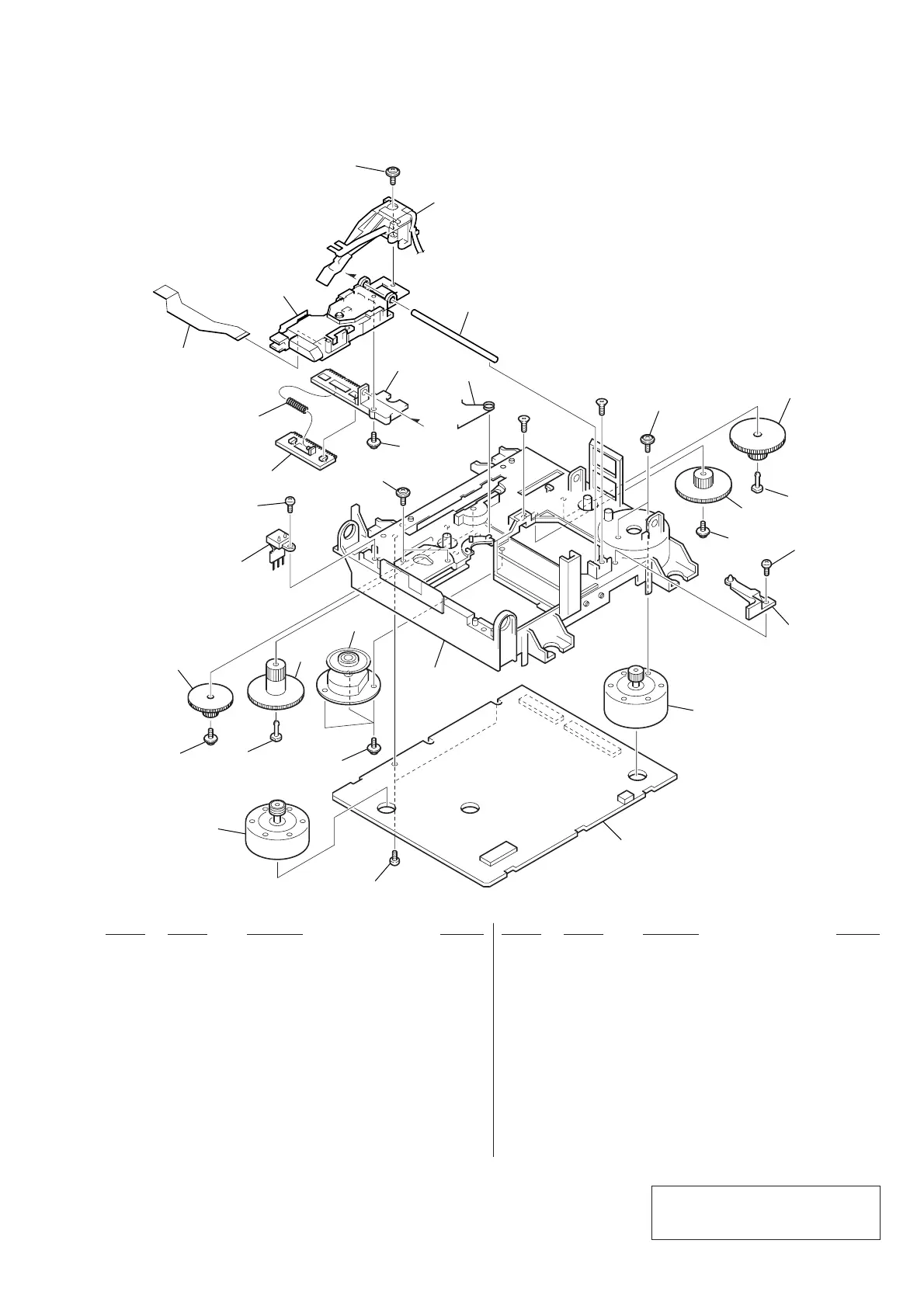

8-5. MD MECHANISM DECK SECTION-2
359
358
357
355
354
356
360
359
370
352
371
362
352
351
363
352
371
370
HR901
#7
#7
S102
M101
M103
M102
361
364
367
365
368
366
A
A
not
supplied
not
supplied
351 A-4725-473-A BD(MD)BOARD, COMPLETE
352 4-231-319-01 SCREW (2X6) CZN, +B (P) TRI
354 4-226-993-01 RACK
355 4-227-014-01 SPRING (RACK), COMPRESSION
356 4-226-992-01 BASE, SL
357 1-678-514-11 PWB, FLEXIBLE
0 358 A-4672-541-A MD OPTICAL PICK-UP(KMS-260B/K1NP)
359 4-988-560-01 SCREW (+P 1.7X6)
360 4-996-265-01 SHAFT, MAIN
361 4-226-989-01 CHASSIS
362 3-372-761-01 SCREW (M1.7), TAPPING
363 4-226-990-01 BASE (BU-A)
364 4-227-023-01 SPRING (SPINDLE), TORSION
365 4-227-004-01 GEAR (LC)
366 4-227-005-01 GEAR (LD)
367 4-227-008-01 GEAR (SC)
368 4-227-009-01 GEAR (SD)
370 4-232-270-01 SCREW (1.7X3.5), +PWH
371 3-372-761-01 SCREW (M1.7), TAPPING
HR901 1-500-670-11 HEAD, OVER LIGHT
S102 1-771-957-11 SWITCH, PUSH (2 KEY)
M101 A-4672-898-A MOTOR ASSY, SPINDLE
M102 A-4735-076-A MOTOR ASSY, SLED
M103 A-4735-074-A MOTOR ASSY, LOADING
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
