SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
89
HCD-CL5MD
• Abbreviation
AUS : Australian model
HK : Hong Kong model

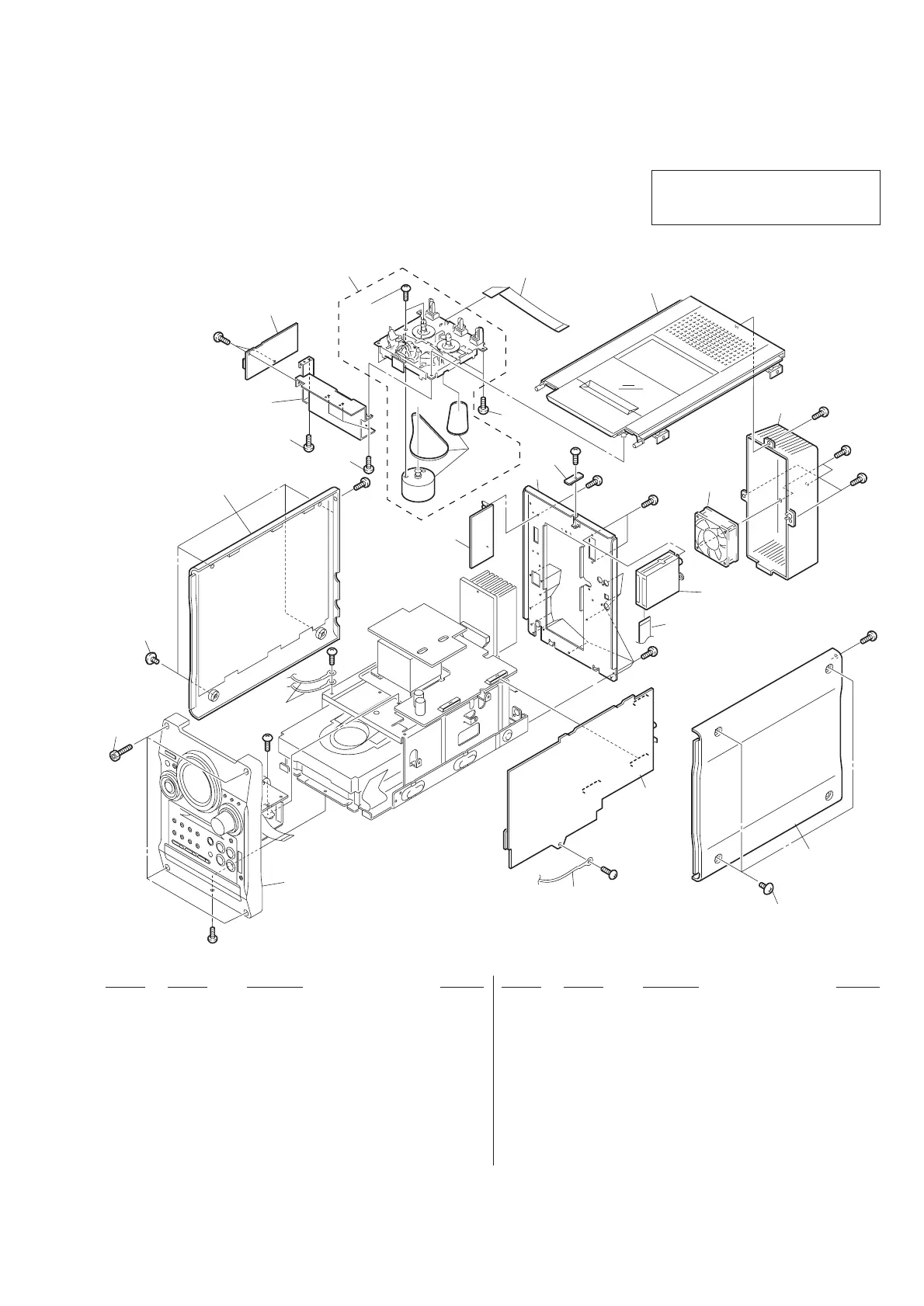

8-1. SIDE PANEL, BACK PANEL SECTION
1 4-232-226-01 SCREW, HEXAGON SOCKET TAPPING
2 3-363-099-11 SCREW (CASE 3 TP2)
3 4-231-649-01 PANEL (L), SIDE
4 A-4476-076-A TC BOARD, COMPLETE
5 1-769-910-11 WIRE (FLAT TYPE) (9 CORE)
6 1-693-529-11 TUNER
7 1-769-944-11 WIRE (FLAT TYPE) (11 CORE) (AUS,HK)
7 1-773-008-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
8 1-680-270-11 THERMAL BOARD
9 X-4953-318-1 PANEL ASSY, TOP
10 4-231-677-41 PANEL, BACK (AEP,UK)
10 4-231-677-51 PANEL, BACK (AUS)
10 4-231-677-61 PANEL, BACK (HK)
11 1-763-072-11 FAN, DC
12 A-2100-929-A TAPE MECHANISM UNIT (TCM-230ASR41CL)
13 4-231-650-01 PANEL (R), SIDE
14 A-4475-470-A MAIN BOARD, COMPLETE (AEP,UK)
14 A-4475-488-A MAIN BOARD, COMPLETE (AUS,HK)
15 4-951-620-01 SCREW (2.6X8), +BVTP
18 1-680-258-11 VOL SEL BOARD (HK)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1#
1#
1#
1#
1#
1#
1#
1#
2#
2#
2#
not
supplied
not
supplied
FRONT PANEL
1
2
3
15
15
13
4
8
9
10
14
11
2
6
15
5
12
7
1#
not
supplied
not
supplied
not
supplied
not
supplied
1#
1#
1#
18
