Sony HCD-FL5D - Front Panel Section-2

116
HCD-FL5D

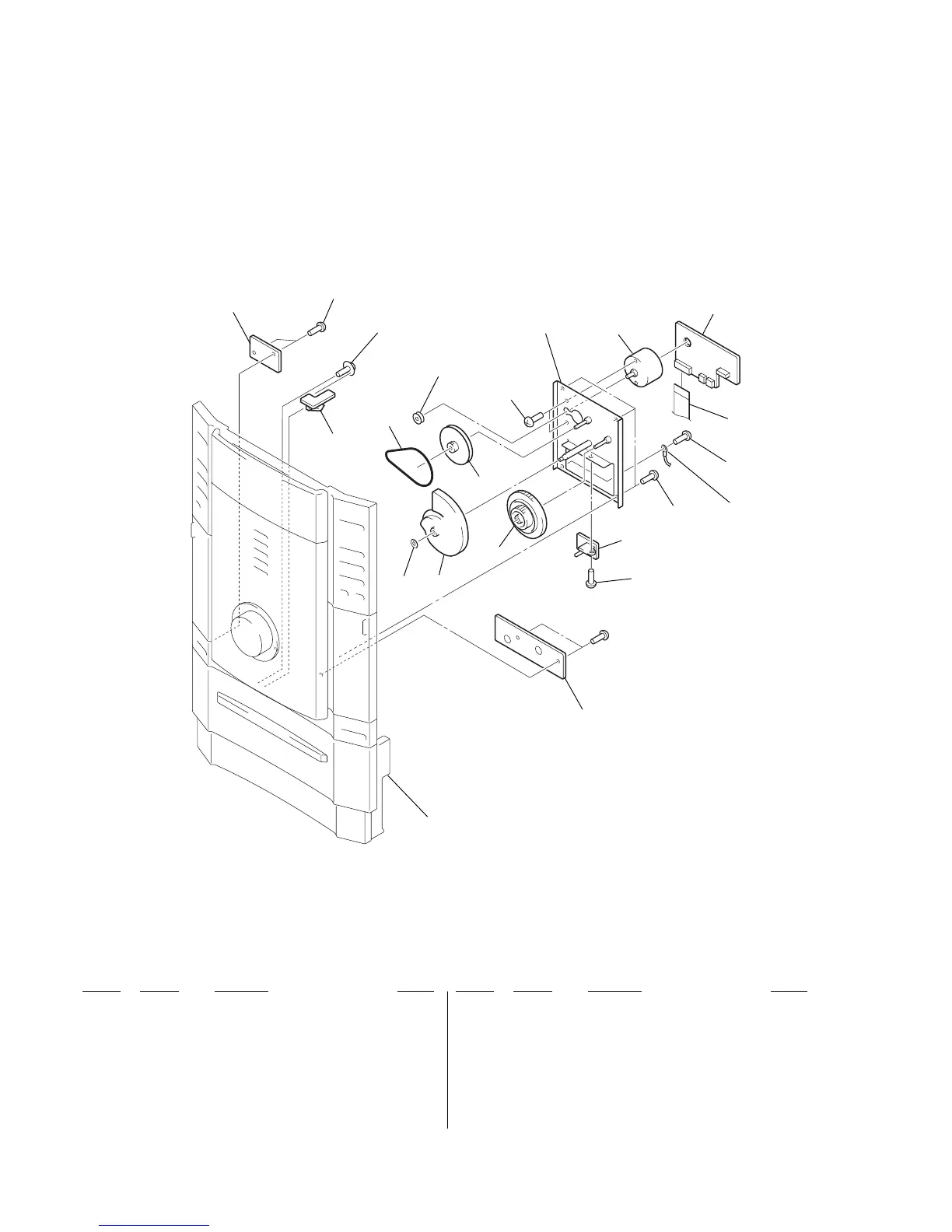

9-3. FRONT PANEL SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-951-620-01 SCREW (2.6X8), +BVTP
102 1-684-200-11 TC SW (A) BOARD
103 4-957-577-01 SCREW PTP WH (2.6X8) (DIA. 10)
104 1-684-199-11 TC DOOR SW BOARD
105 4-240-092-01 BELT
106 4-239-726-01 PULLEY
107 4-639-890-01 SCREW (+B M2.6X2.5)
109 1-684-202-11 CD MOTOR BOARD
110 1-773-032-11 WIRE (FLAT TYPE) (15 CORE)
111 1-684-204-11 CD DOOR SW1 BOARD
112 4-238-999-01 GEAR (A)
113 4-239-000-01 CAM
114 4-986-463-01 WASHER (14B)
115 1-684-198-11 TC DOOR BOARD
M301 1-763-790-11 MOTOR, DC (CD DOOR OPEN/CLOSE)
#1 7-685-646-79 SCREW +BVTP3X8 TYPE2 IT-3
101
103
104
114
106
107
110
101
101
111
101
115
109
113
112
105
102
not supplied
front panel section-3
not supplied
M301
not supplied
#1
