Sony HCD-FL5D - Printed Wiring Board - MB Board (Component Side)

HCD-FL5D
4646
D201 B-10
IC206 F-10
IC215 H-8
IC509 J-4
IC701 J-9
IC901 H-5
IC902 F-7
IC904 F-7
IC906 E-6
Q903 B-3
Q904 B-3
(COMPONENT SIDE)
MB BOARD
IC906
IC902
IC904
IC901
IC215
IC206
105156
157
208
104
53
1
IC509
120
6041
21
40
80
61
IC701
MC BOARD
CN112
B
SS
71
SP RELAY
BOARD
NO816
C
VIDEO
BOARD
CN701
E
4
2
3
1
31
45
56 29
128
RF BOARD
CN002
A
1-684-998-
12
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
I
J
K
L
JW303
JW305
R805
C928
R570
R571
R773
R771
R284

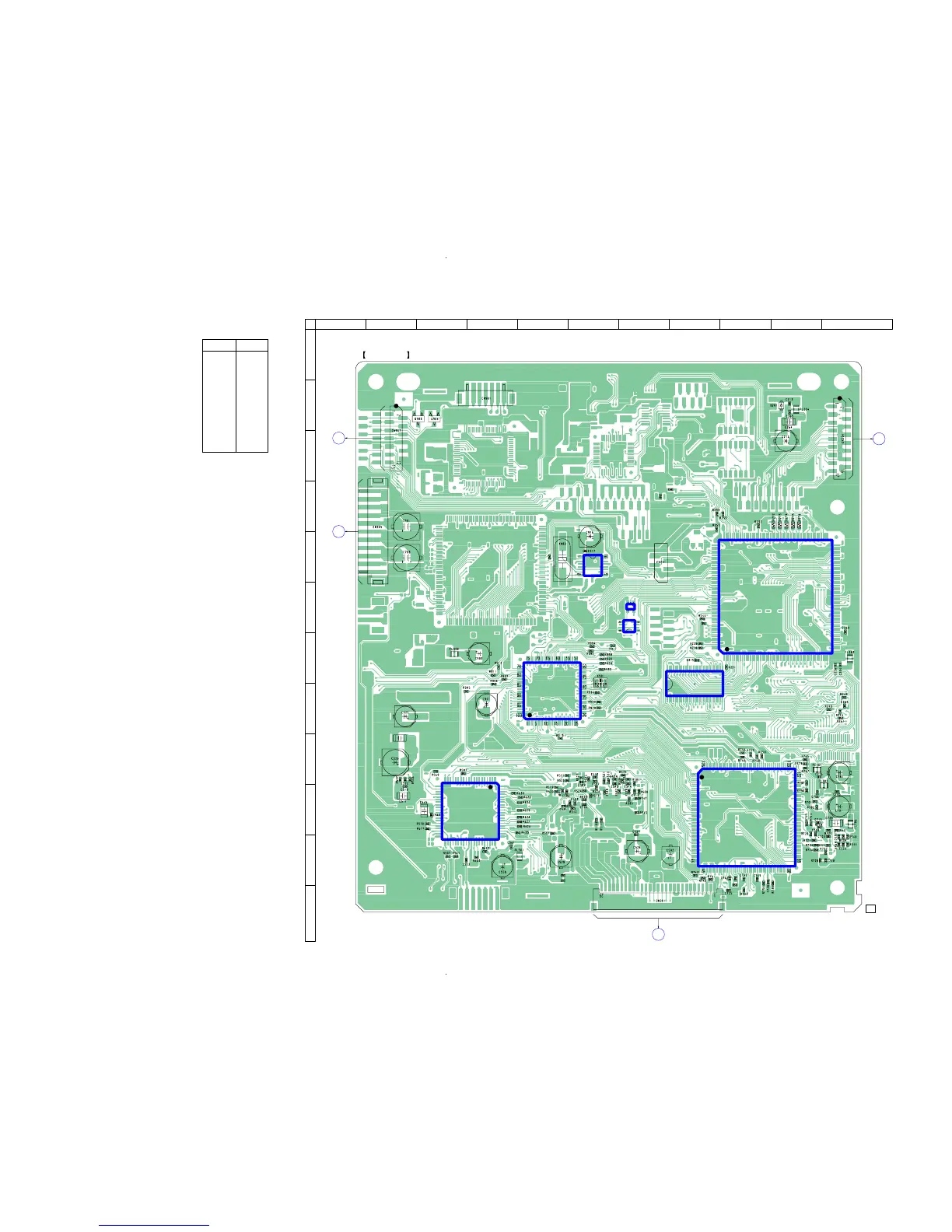

8-10. PRINTED WIRING BOARD – MB Board (Component Side) – • See page 43 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
(Page 62)
(Page 74)
(Page 84)
(Page 44)
