Sony HCD-FL5D - Printed Wiring Board - MB Board (Conductor Side)

HCD-FL5D
4747
MB BOARD
(CONDUCTOR SIDE)
IC210
IC202
IC203
1
4
8
5
IC204
(TYPE B)
IC205
(TYPE A)
IC703
IC706
IC501
120
21
40
80
61
6041
IC903
IC503
IC907
1
3
2
86
1
44
43
E
E
1
3
2
1-684-998-
12
1 2 3 4 5 6 7 8 9 10 11
A
B
C
D
E
F
G
H
I
J
K
R285
R774
R784
R779
R729

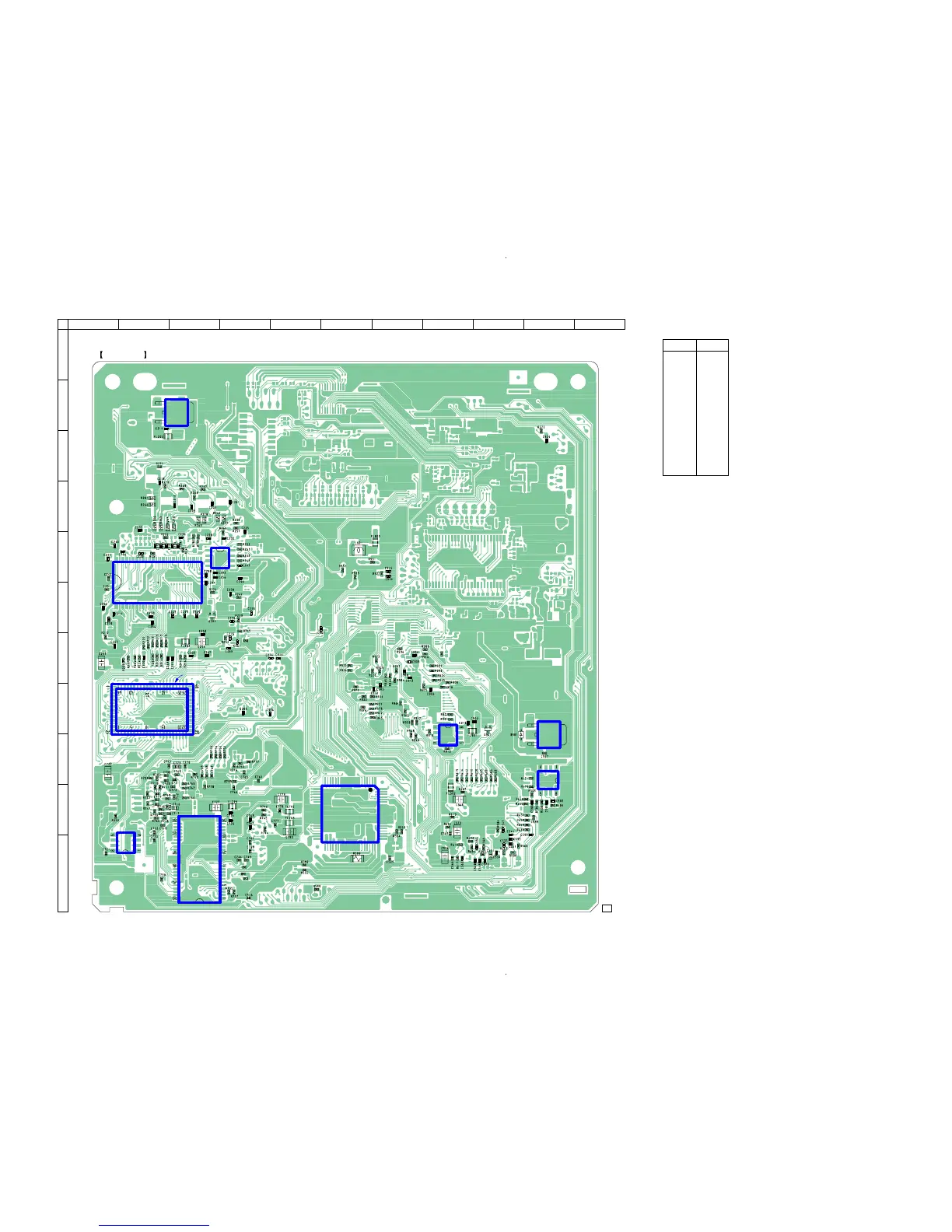

8-11. PRINTED WIRING BOARD – MB Board (Conductor Side) – • See page 43 for Circuit Boards Location. Note: When replacing IC205 of type A, install IC204 instead of IC205.
• Semiconductor
Location
Ref. No. Location
D901 I-9
IC202 F-2
IC203 E-4
IC204 H-2
IC205 H-2
IC210 B-3
IC501 J-6
IC503 I-10
IC703 K-2
IC706 K-3
IC903 I-8
IC907 I-10
Q201 F-3
Q901 H-9
Ver 1.2
