Sony HCD-FL5D - Schematic Diagram - REGULATOR Board

HCD-FL5D
7575
C878
C879C871
C870
C880C872
C873 C881
Q865
NO704
IC804
IC803
IC801
IC802
R887
R873R871
R872
Q864
10
16V
10
16V
0.1
50V
0.1
50V
10
16V
0.1
50V
0.1
50V
10
16V
BA1A4M
13P
TA7805S
TA7810S
TA7805S
100
2.7k2.7k
2.7k
2SB1375
+5V REGULATOR
Q864,865
B+ SWITCH
OI
G
OI
G
OI
G
OI
G
+5V REGULATOR
+4V REGULATOR
+10V REGULATOR
µPC3504AHF

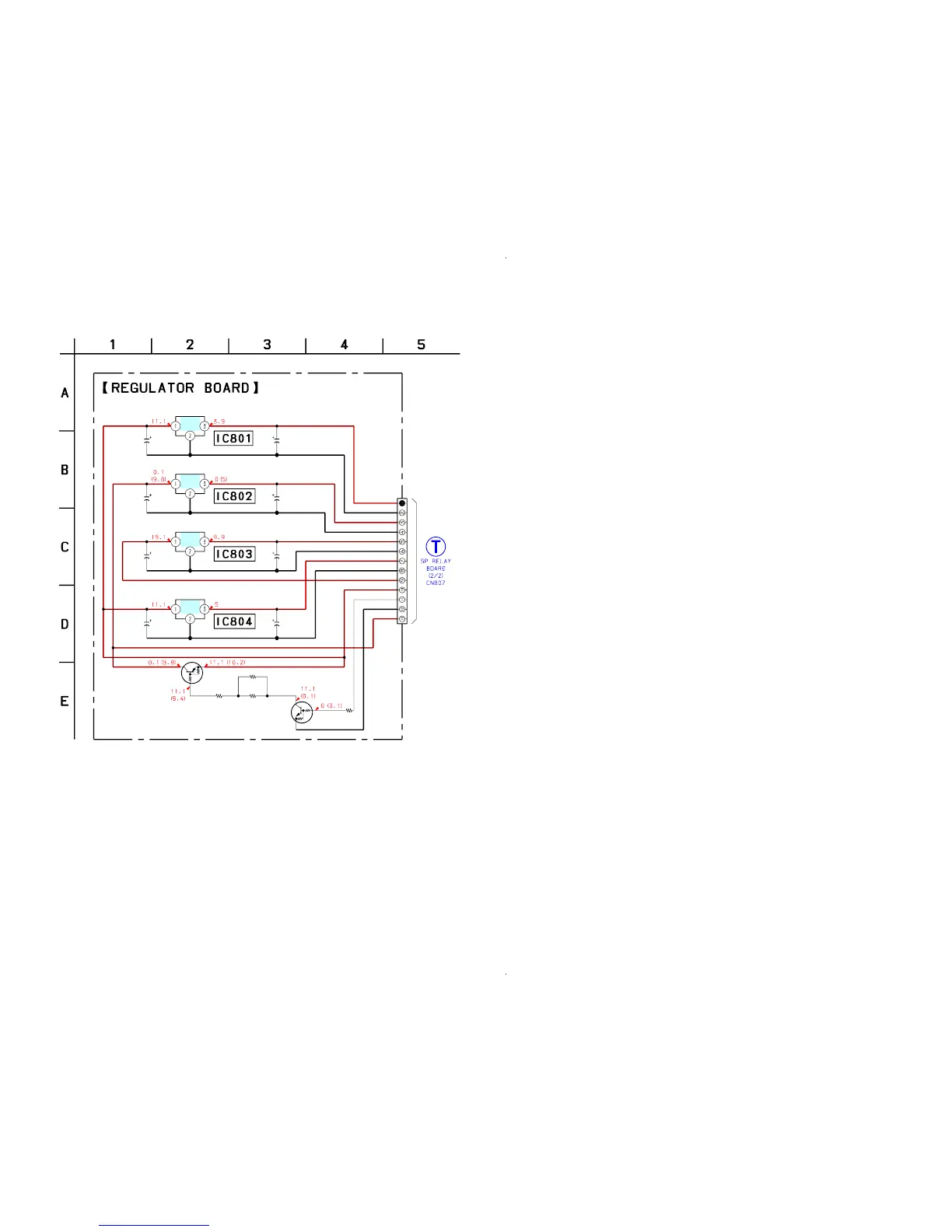

8-37. SCHEMATIC DIAGRAM – REGULATOR Board –
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER
(): CD/DVD PLAY
(Page 77)
