Sony HCD-FL5D - Tape Mechanism Deck Section

129
HCD-FL5D
801
801
802
802
803
803
805
805
804
806
806
804
HRPE901
HP901
810
808
807
807
809
811
PM901
PM902

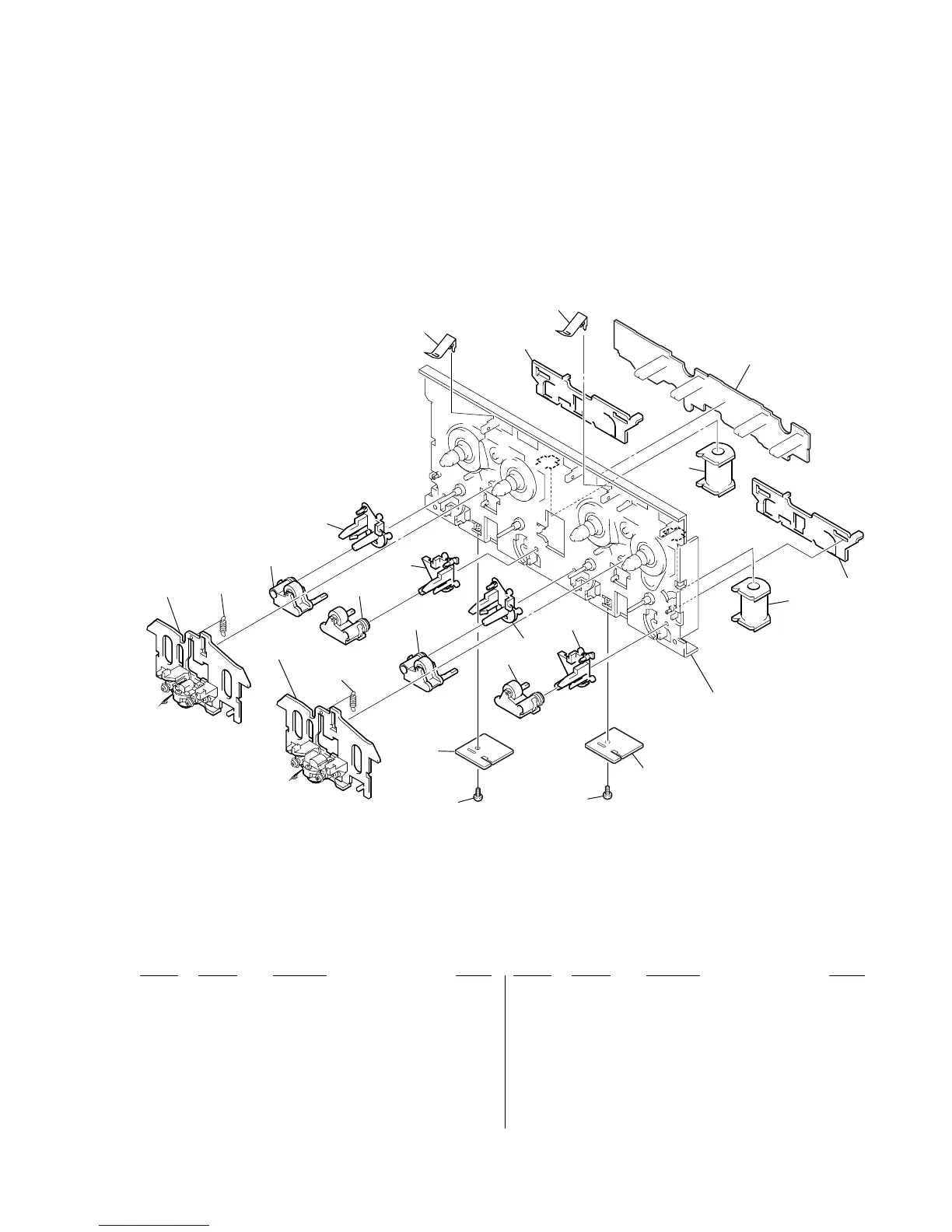

tape mechanism deck section-3
811
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
801 3-016-574-11 SPRING (HEAD), TENSION
802 3-017-366-01 BASE (PINCH LEVER REV)
803 3-017-365-01 BASE (PINCH LEVER FWD)
804 X-3374-156-5 PINCH LEVER (REV) ASSY
805 X-3374-155-5 PINCH LEVER (FWD) ASSY
806 3-016-567-02 SPRING (CASSETTE), LEAF
807 4-227-872-01 SCREW (+PTT 2X4), GROUND POINT
808 A-2007-839-A HEAD (A) BOARD, COMPLETE
809 A-2007-840-A HEAD (B) BOARD, COMPLETE
810 A-4728-872-A SW BOARD, COMPLETE
811 3-016-566-01 SLIDER, REVERSE
HP901 A-2004-765-A BASE (A) ASSY, HEAD (PB)
(for TCM-230PWR41CS)
HRPE901A-2004-766-A BASE (B) ASSY, HEAD (REC/PB/ERASE)
(for TCM-230PWR41CS)
PM901 1-454-887-21 SOLENOID, PLUNGER (for TCM-230PWR41CS)
PM902 1-454-887-21 SOLENOID, PLUNGER (for TCM-230PWR41CS)
9-16. TAPE MECHANISM DECK SECTION-2
(TCM-230PWR41CS: TH MODEL)
