Sony HCD-FL5D - Chassis Section-2

120
HCD-FL5D

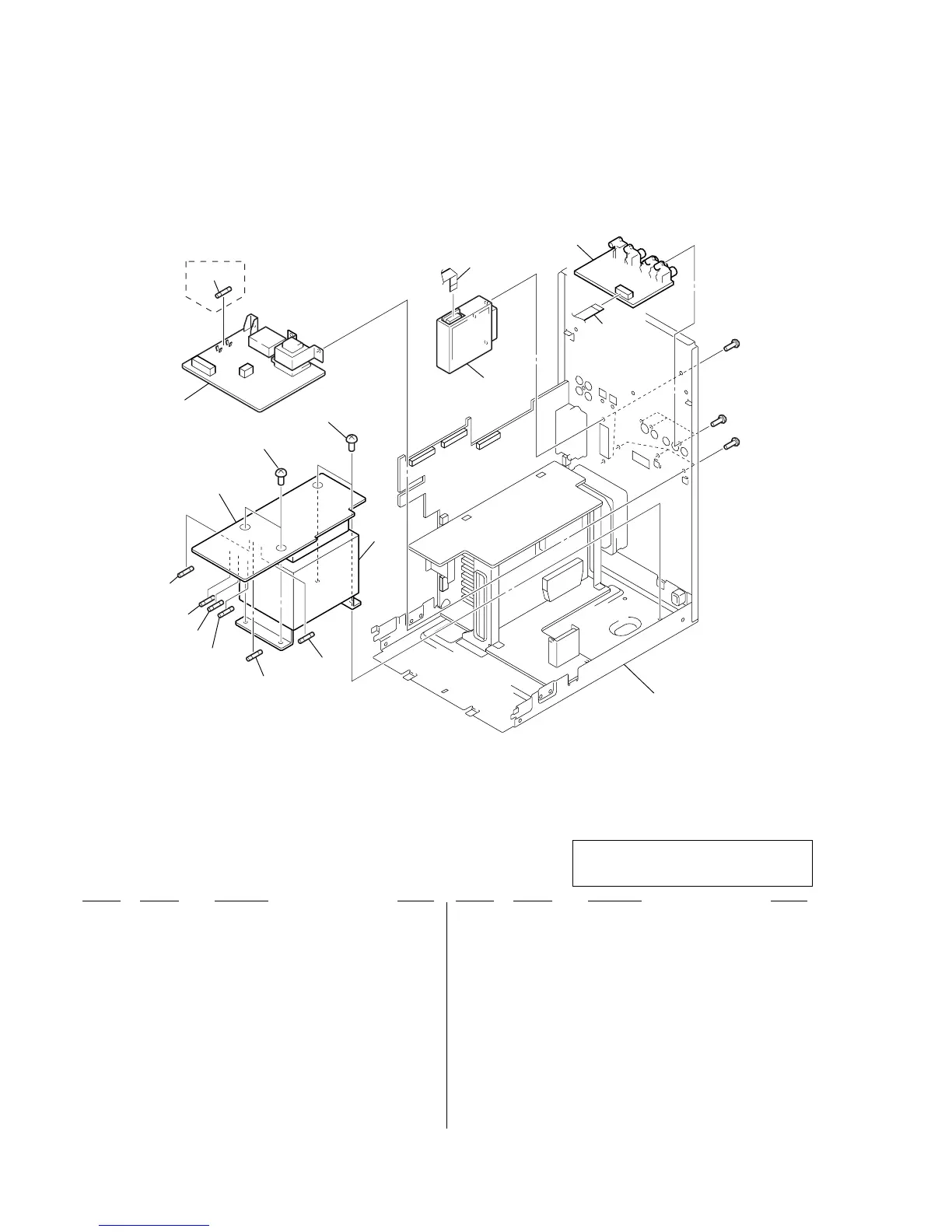

9-7. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 1-684-692-11 VIDEO BOARD
352 1-792-099-11 WIRE (FLAT TYPE) (17 CORE)
353 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
354 A-4730-184-A TRANS BOARD, COMPLETE (SP, TH)
354 A-4730-188-A TRANS BOARD, COMPLETE (MX)
354 A-4730-190-A TRANS BOARD, COMPLETE (EA)
354 A-4730-203-A TRANS BOARD, COMPLETE (AUS)
355 4-900-386-01 SCREW
358 1-693-572-22 TUNER (FM/AM)
359 A-4730-192-A SUB TRANS BOARD, COMPLETE (SP)
359 A-4730-197-A SUB TRANS BOARD, COMPLETE (MX)
359 A-4730-199-A SUB TRANS BOARD, COMPLETE (EA)
359 A-4730-206-A SUB TRANS BOARD, COMPLETE (AUS)
359 A-4730-220-A SUB TRANS BOARD, COMPLETE (TH)
0 F913 1-532-299-00 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
(EA, MX, SP)
0 F914 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0 F915 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0 F916 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0 F917 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (8A/250V)
0 F918 1-532-325-00 FUSE, GLASS TUBE (DIA. 5) (6.3A/250V)
0 F919 1-532-299-00 FUSE, GLASS TUBE (DIA. 5) (5A/250V)
0 T911 1-437-800-11 TRANSFORMER, POWER (AUS, MX, SP, TH)
0 T911 1-437-801-11 TRANSFORMER, POWER (EA)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
354
355
355
359
358
352
351
353
chassis section-3
T911
F919
F918
F916
F915
F914
F917
F913
#1
#1
#1
EA, MX, SP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
