Sony HCD-FL5D - SW, Head Boards Removal; DVD Mechanism Block Disassembly

15
HCD-FL5D

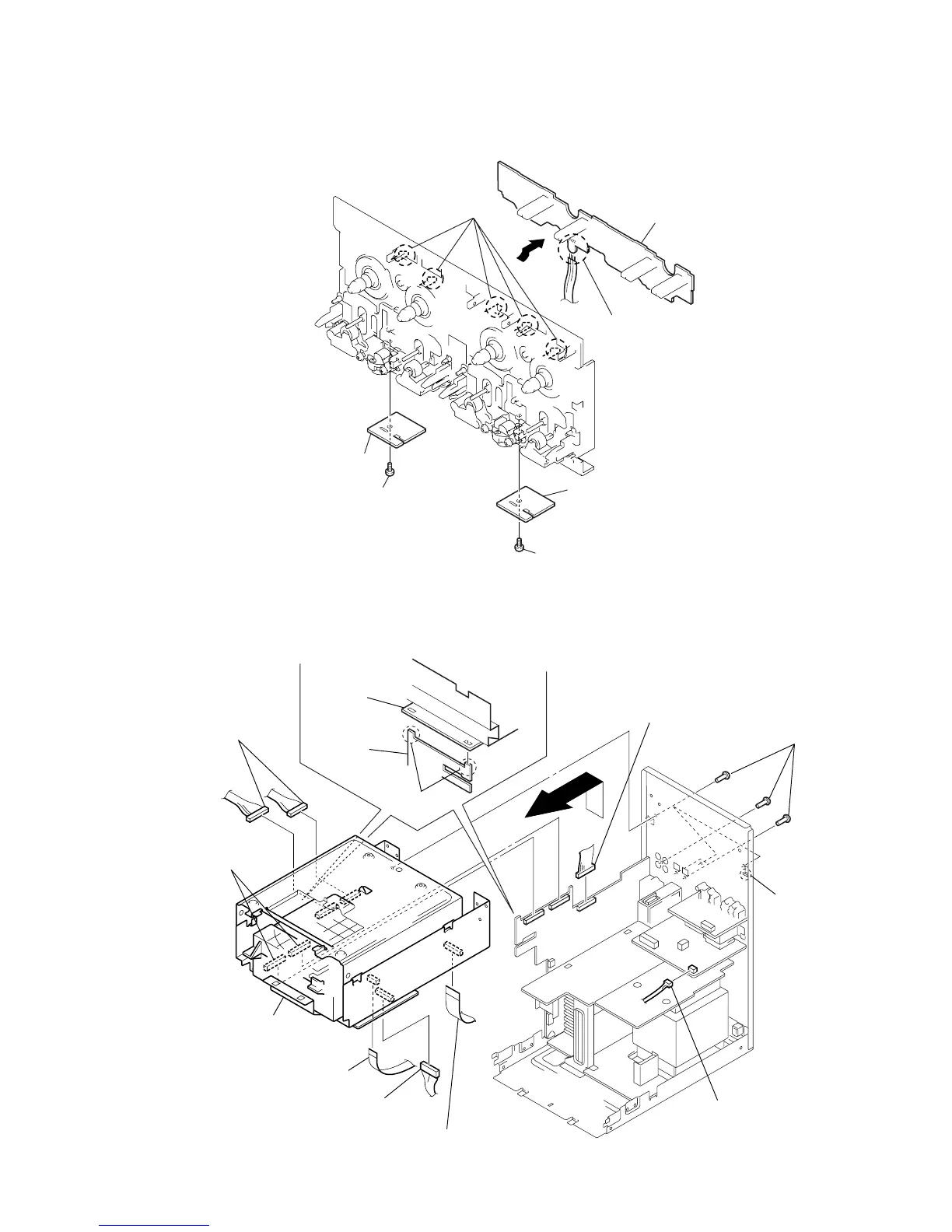

3-10. SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD
3-11. DVD MECHANISM BLOCK
6 screw (PTT 2 × 4)
4 screw (PTT 2 × 4)
3 SW board
2 five claws
5 head (A) board
7 head (B) board
1 Remove the four solders.
8 two connectors
(CN805, 806)
9 claw
6 two connectors
(CN702, 703)
0 two claws
SP-relay
board
MC board
qa DVD mechanism block
3 connector
(CN905)
4 connector
(CN903)
1 wire (flat type)
(11 core: EXCEPT AEP, UK)/
wire (flat type)
(15 core: AEP, UK)
(CN105)
2 wire (flat type)
(17 core) (CN204)
5 connector
(CN807)
7 six screws
(BVTP3
× 8)
