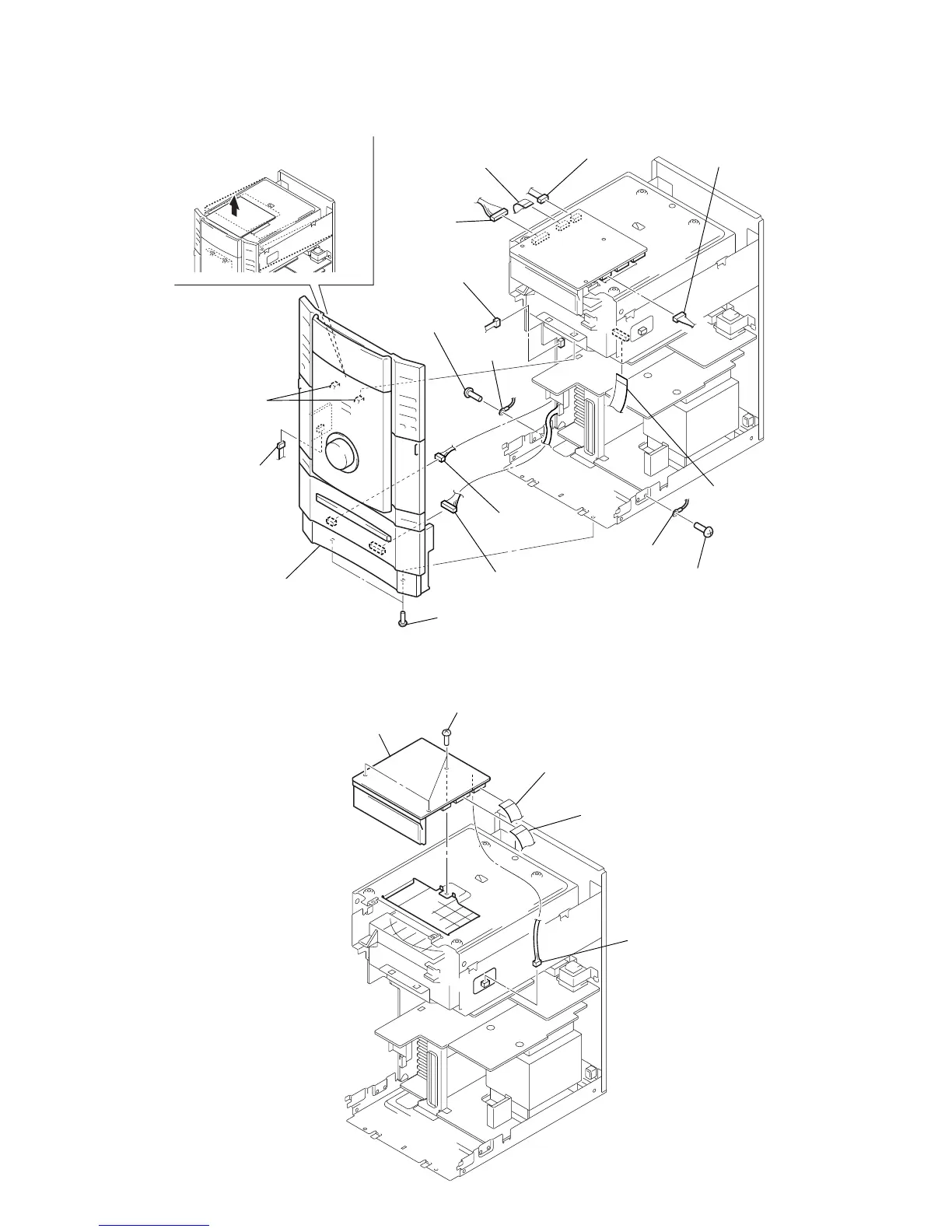

3-6. FRONT PANEL ASSY
3-7. GC BOARD
two claws
qg Rifting up the CD mechanism block
section, and release two claws.
7 connector
(CN1)
8 connector
(CN808)
9 connector
(CN318)
1 wire (flat type) (15 core)
(CN206)
5 wire (flat type)
(17 core) (CN109)
2 connector
(CN201)
3 connector
(CN203)
4 connector
(CN207)
6 connector
(CN2)
qf two screws
(BVTP3 × 8)
0 screw
(BVTP3 × 8)
qs screw
(BVTP3 × 8)
qa harness
qd harness
qh front panel assy
4 three screws
(BVTP3
× 8)
2 wire (flat type) (19 core)
(CN202)
1 wire (flat type) (17 core)
(CN204)
3 connector
(CN713)
5 GC board
