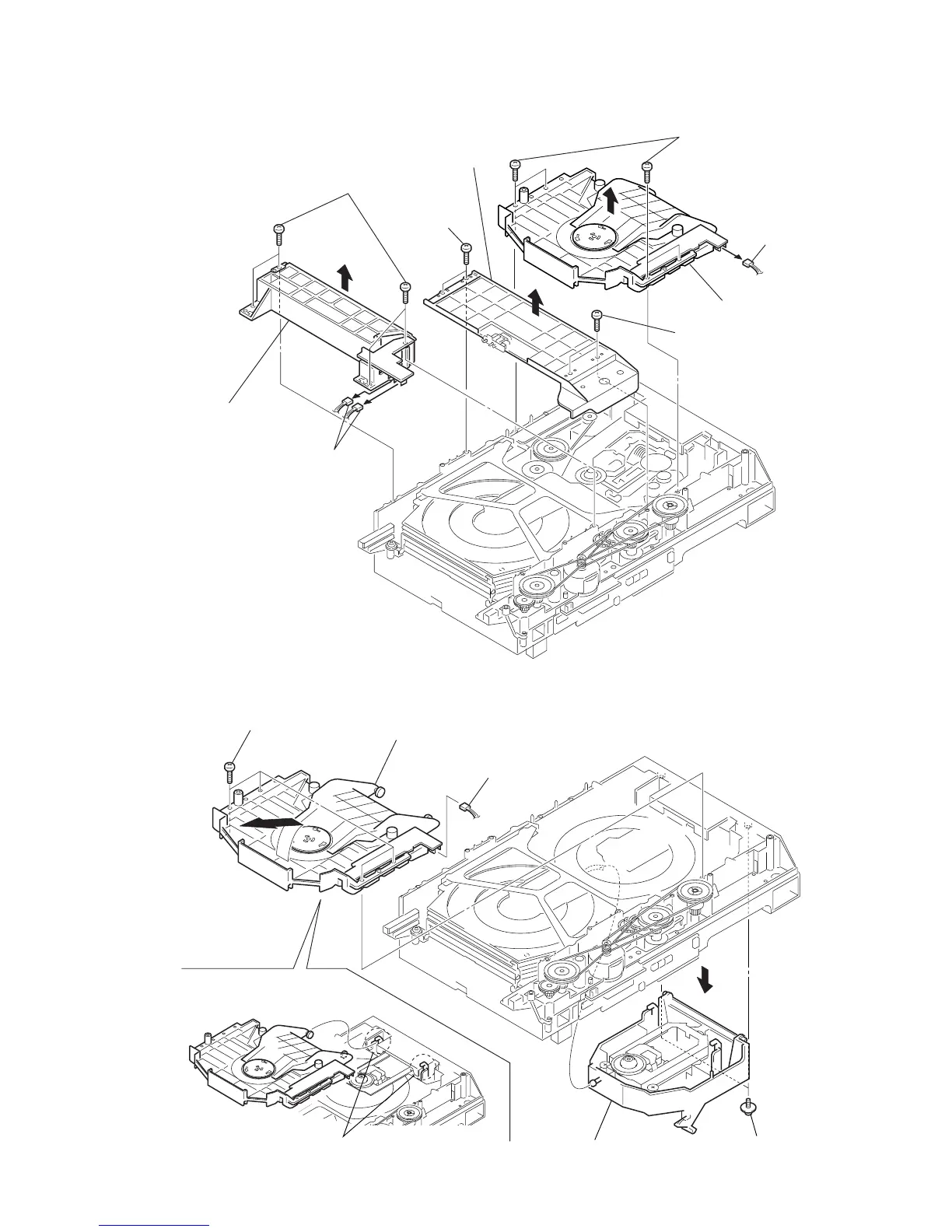

3-14. FITTING BASE (GUIDE) ASSY, BRACKET (CHASSIS), MAGNET ASSY
3-15. BASE UNIT (DVBU14)
1 two connectors
(CN709, 715)
7 connecto
r
(CN710)
9 magnet assy
2 four screws
(BTTP M2.6)
8 four screws
(BTTP M2.6)
4 two screws
(BTTP M2.6)
6 Bracket
(chassis)
5 two screws
(BTTP M2.6)
3 fitting base
(guide) assy
6 base unit
(DVBU14)
5 two screws
(PTPWH M2.6
)
1 connector
(CN710)
4 magnet assy
3 two hooks
2 four screws
(BTTP M2.6)
